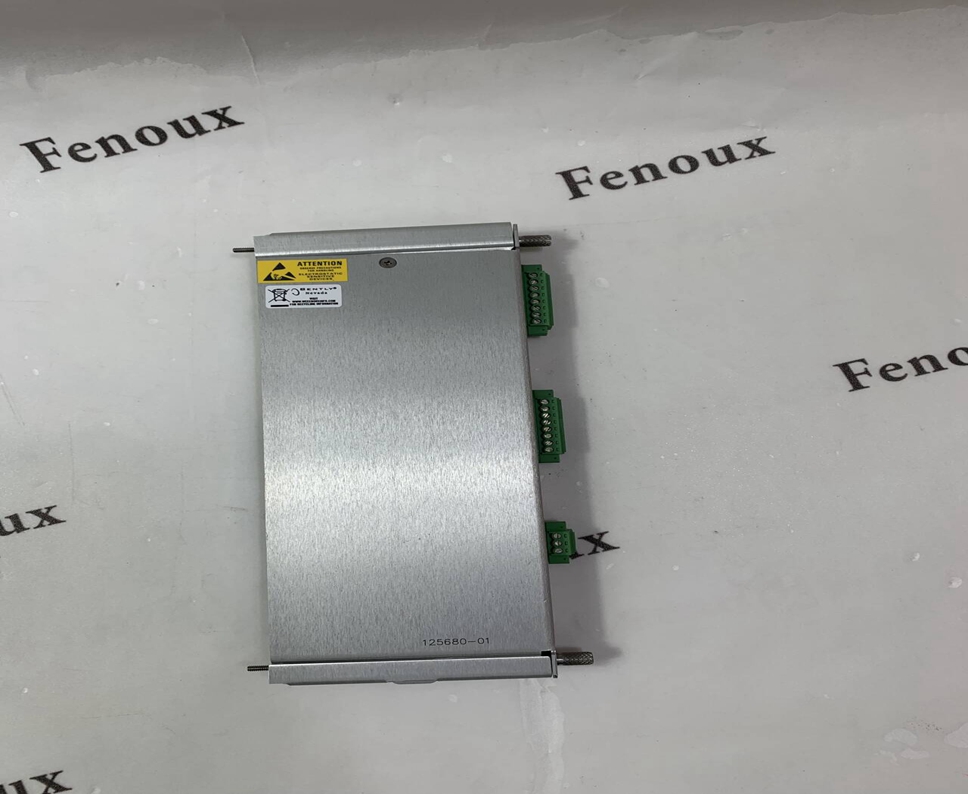

Bently Nevada 125680-01

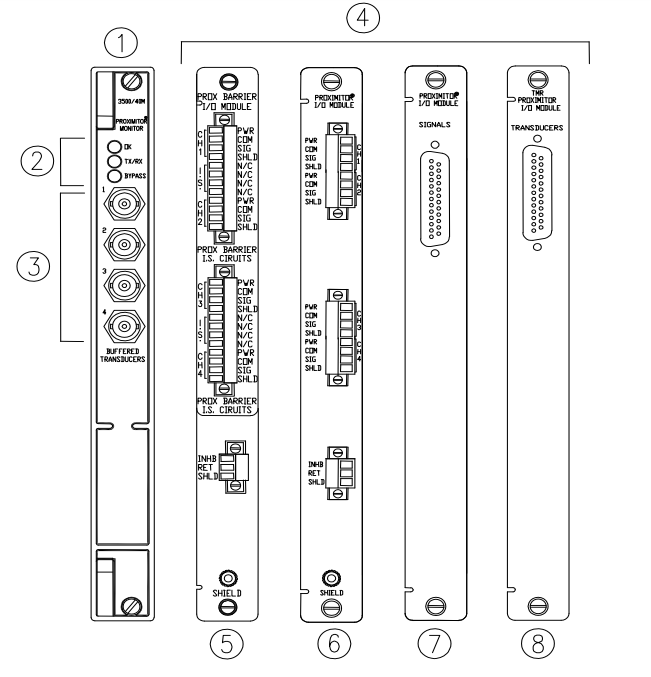

1. Main module front view.

2. Status LEDs.

3. Buffered Transducer Outputs.

4. I/O modules

5. Barrier I/O module, Internal Termination.

6. I/O Module, Internal Termination.

7. I/O Module, External Termination.

8. I/O Module, External Termination.

Description:

The 3500/40M Proximitor Monitor is a 4-channel monitor that accepts input from

Bently Nevada proximity transducers, conditions the signal to provide various

vibration and position measurements, and compares the conditioned signals

with user-programmable alarms. The user can program each channel of the

3500/40M with the 3500 Rack Configuration Software to perform any of the

following functions:

 Radial Vibration

 Thrust Position

 Differential Expansion

 Eccentricity

 REBAM®

Note: The monitor channels are programmed in pairs and can perform up to two of these

functions at a time. Channels 1 and 2 can perform one function, while channels 3 and 4

perform another (or the same) function.

The primary purpose of the 3500/40M monitor is to provide:

1. Machinery protection by continuously comparing monitored parameters

against configured alarm setpoints in order to drive alarms.

2. Essential machine information for both operations and maintenance

personnel.

Each channel, depending on configuration, typically conditions its input signal

into various parameters called “static values”. The user can configure alert

setpoints for each active static value and Danger setpoints for any two of the

active static values.
