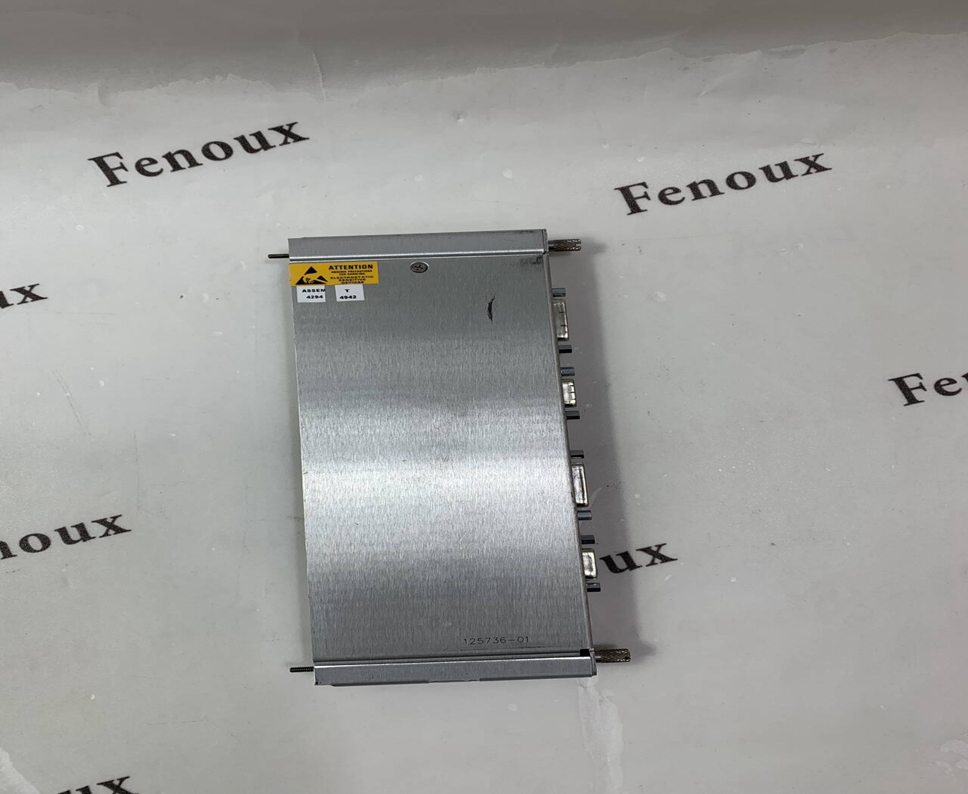

Bently Nevada 125736-01

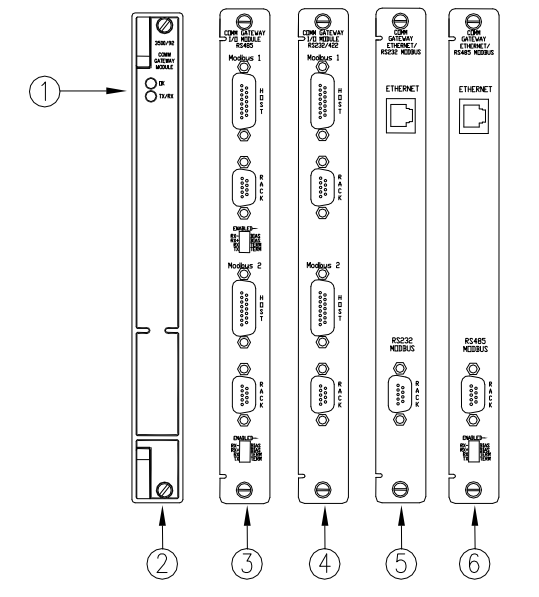

1) Status LEDs

2) Comm Gateway Module

3) RS485 I/O Module

4) RS232/422 I/O Module

5) Ethernet/RS232 I/O Module

6) Ethernet/RS485 I/O Module

Description:

The 3500/92 Communication Gateway module provides extensive

communication capabilities of all rack monitored values and statuses for

integration with process control and other automation systems using both

Ethernet TCP/IP and serial (RS232/RS422/RS485) communications capabilities. It

also permits Ethernet communications with 3500 Rack Configuration Software

and Data Acquisition Software.

Supported protocols include:

• Modicon® Modbus® protocol (via serial communications)

• Modbus/TCP protocol (a variant of serial Modbus used for TCP/IP

Ethernet communications)

• Proprietary Bently Nevada protocol (for communication with 3500 Rack

Configuration and Data Acquisition Software packages)

The Ethernet connection to the 3500/92 is an RJ45 connection for 10BASE-T star

configuration Ethernet networks.

The 3500/92 supports the communication interfaces, communication protocols,

and other features from the original 3500/90 with the exception of the primary

value Modbus registers. The 3500/92 now has a Configurable Modbus Register

Utility, which can provide the same functionality originally addressed by the

primary value Modbus registers.
