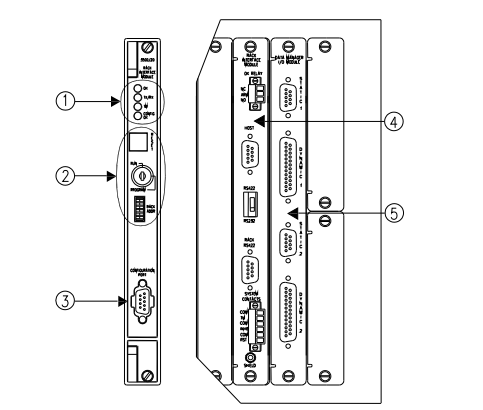

1) LEDs: Indicate the operating status of the module
2) Hardware Switches:
3) Configuration Port: Configure or retrieve machinery data from only this rack using RS-232
protocol.
4) Rack Interface I/O Module: Daisy chain or configure racks using RS-232 and RS-422
protocol
5) Data Manager I/O Module: Connect two Bently Nevada Communication Processors to the
3500 rack.
Description:
The Rack Interface Module (RIM) is the primary interface to the 3500 rack. It
supports a proprietary protocol used to configure the rack and retrieve
machinery information. The RIM must be located in slot 1 of the rack (next to the
power supplies).
The RIM supports compatible Bently Nevada external communications
processors such as TDXnet, TDIX, and DDIX. While the RIM provides certain
functions common to the entire rack, the RIM is not part of the critical monitoring
path and has no effect on the proper, normal operation of the overall monitoring
system. One RIM is required per rack.
For Triple Modular Redundant (TMR) applications, the 3500 System requires a
TMR version of the RIM. In addition to all the standard RIM functions, the TMR RIM
also performs "monitor channel comparison." The 3500 TMR configuration
implements monitor voting using the setup specified in the monitor options.
Using this method, the TMR RIM continually compares the outputs from three (3)
redundant monitors. If the TMR RIM detects that the information from one of
those monitors is no longer within a configured percentof the information of the
other two monitors, it will flag that the monitor is in error and place an event in
the System Event List.
