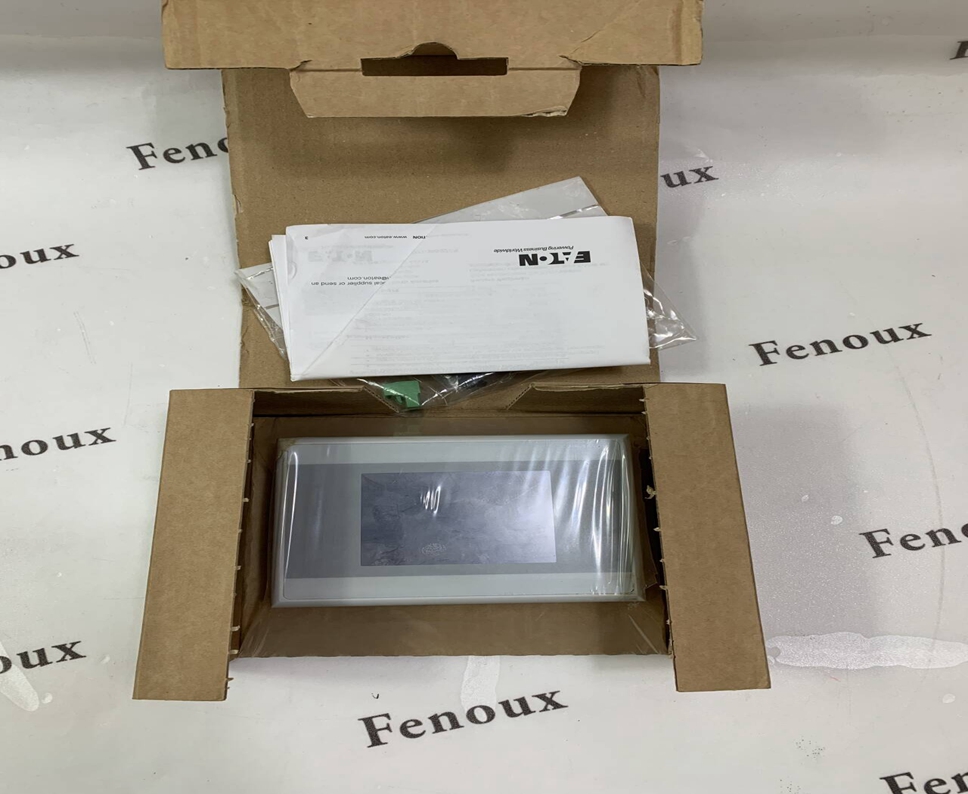

XV-102-B2-35TQR-10 EATON

These Operating Instructions contain the information required for the correct and safe use of the

MICRO PANELs XV-102. The Operating Instructions are part of the devices and must therefore be kept

nearby.

These Operating Instructions describe all aspects of the devices: transport, installation, commissioning,

operation, maintenance, storage and disposal. The operating system and the application software are

not described.

Description:

A nameplate is fixed on the rear of the device in order to identify it. The nameplate contains the following

information:

„Manufacturer address

„Type designation

„Power supply required

„Part no. (Part-No or Art.-No)

„Serial no.

„Time of manufacturing (week/year)

„Approval mark and information to the approval

„Arrangement of interfaces and operating elements

„Permissible mounting options (top edge «Top»)

Support To ensure fast and optimum support always provide the support personnel with the following information on the nameplate:

„Part no. (Part-No or Art.-No)

„Serial no.

Hazards may still occur even though the device meets the current state of the art and complies with all

recognized safety requirements.

The device must only be installed and commissioned in perfect technical condition and in compliance

with this document.

The personnel responsible for installation, operation, maintenance and service must be adequately

qualified. These persons must be sufficiently trained or instructed and they must be informed of all

hazards and risks associated with the device.
