PKZM0-XM32DE Eaton

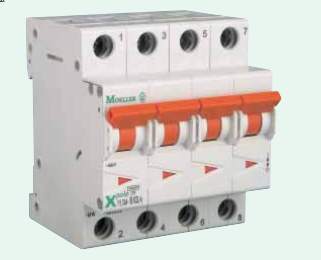

High-quality miniature circuit breakers for trade and industryapplications

 Contact position indicator red - greenGuide for secure terminal connection

3-position DIN rail clip, permits removal from existing busbarsystem

Comprehensive range of accessories suitable for subsequentinstallation

Rated currents up to 63 A

Tripping characteristics B, C, DRated breaking capacity 10 kA according to IEC/EN 60898

Description:

Miniature Circuit Breakers PLS.... PLZ..High selectivity between MCB and back-up fuse due to low let-through

energy

Compatible with standard busbar

Twin-purpose terminal (lift/open-mouthed) above and below

Accessories:

Auxiliary switch for

subsequent installation

Tripping signal contact for

ZPAHK

248436

Busbar positioning optionally above or below

Meets the requirements of isulation co-ordination

distance between contacts 2 4 mm for secure isolation

subsequent installation

ZP-NHK

Remate control and automatic swit ching device

Z-FW-BAS

Shunt trip release

ZP-ASA..

Suitable for applications up to 48 V DC (use PLS6-DC for higher DC voltages)Undervoltage releasePLS6-DC:Rated breaking capacity 6 kA according to IEC 23E

Compact enclosure

Rated voltage 250  (per pole]. T = 4 ms

Take into account polarity!

Additional terminal 35mm?

Anti-tamper device

2-U5A.

TC-2

T-4

HA7-2K35

HA7-5PE

248437

248295

248438 248439

248288-248291

870001400

870001401

751942199

750960510

Connection diagrams

1-pole

1+Npale (15MU1+Npole (2MU2pak

Technical Data

1

Electrical

Design according toCurrent test marks as printed onto the device

IEU5A. 60898

Rated voltage

PLS, PLZ.

AC:230/400V

PLS., PLZ

DC: 48V (per pole)DC: 250v (per pole)

PLS6-DC

Rated frequency50/60 H2Rated breaking capacity according to IECEN 60898PLSM,PLZM

10kA6 kA

PLS6, PLZ6,PLS6-DC

B, C, D

Characteristic

Back-up fuse

>10 kA

max. 100 A gLmax. 100 A gLw

>6 kA

Selectivity class

Endurance

2 8,000 operating cycles

Mechanical

Frame sizeDevice heightDevice width

Mounting

Degree of protection

Upper and lower terminalsTerminal protection

Terminal capacity(1p+N,1.5MU)

Terminal fastening torque

(1p+N,1.5MU)

Busbar thickness

45 mm

80mm

17.5 mm per pole (1MU)263 mm: device 1P+N (1.5MU)quick fastening with3 lock-in positions onDIN rail EN 50022IP20

open mouthed/lift terminalsfinger and hand touch safe,VBG 4.OVE-EN 6

1-25 mm2

1-25 mm2 / 1-2x10 mm2 (N)

2-2.4 Nm

2-2.4 Nm / 1,2-1,5 Nm (N)

0.82mm
