871CC “resistivity” sensors are manufactured to be ±2% accurate of their nominal 0.1 cm-1 cell
value. These sensors are also tested and labeled with their individual cell factors (CF) as well as the
true temperature at which a thermistor is exactly 100 kΩ or RTD is 100 Ω. The overall system
accuracy may be improved by entering the individual sensor parameters into the analyzer.
“Entering a tCF Value” on page 71 and “Entering a CF Value” on page 73 are the pertinent
procedures to follow to calibrate the 873RS analyzer for the individual sensor being used.

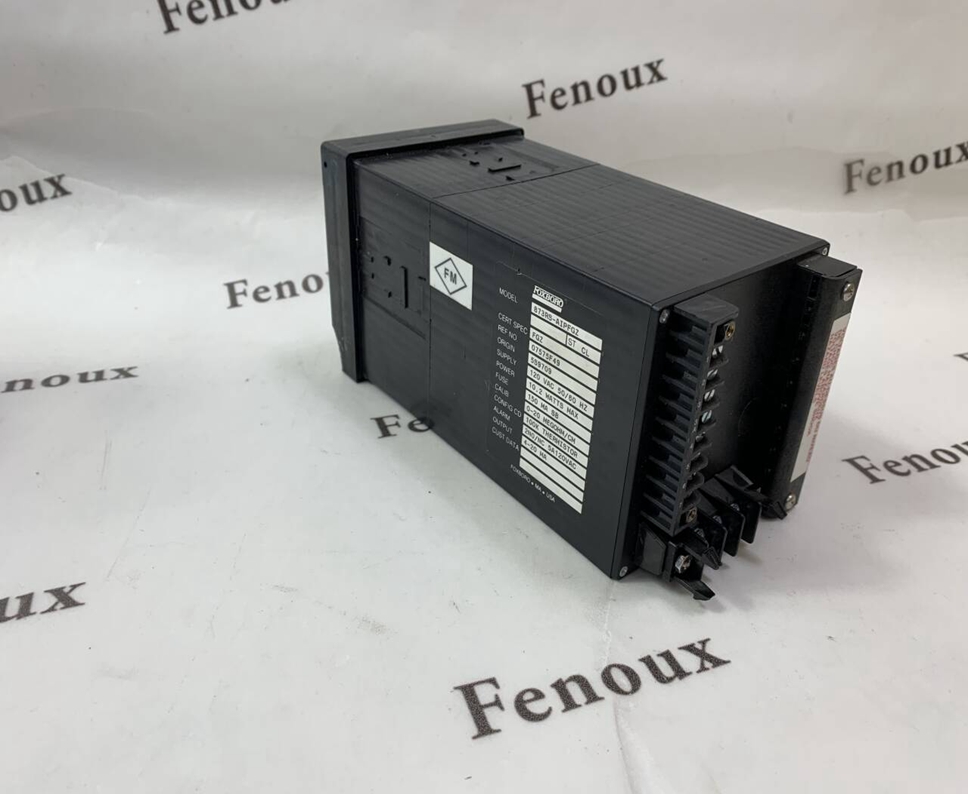

The plastic enclosure is intended for panel mounting in general purpose locations, and mounts in
a 1/4 DIN size panel cutout. It meets the enclosure ratings of NEMA 1, CSA Enclosure 1, and
IEC Degree of Protection IP-45.
The metal enclosure is intended for field locations and may be panel, pipe, or surface mounted.
The housing is extruded aluminum coated with a tough epoxy-based paint. The enclosure is
watertight, dusttight, corrosion-resistant, meeting the enclosure ratings of NEMA 4X, CSA
Enclosure 4X, and IEC Degree of Protection IP-65, and fits in a 92 x 92 mm (3.6 x 3.6 in) panel
cutout (1/4 DIN size). The metal enclosure provides protection against radio frequency
interference (RFI) and electromagnetic interference (EMI).
Dual Alarms
Two independent, nonpowered Form C contacts, rated 5 A noninductive, 125 V ac/30 V dc
(minimum current rating 1 A). Inductive loads can be driven with external surge-absorbing
devices installed across contact terminations.
! CAUTION
When the contacts are used at signal levels of less than 20 W, contact function may
become unreliable over time due to the formation of an oxide layer on the contacts.
See “Alarm Contact Maintenance” on page 87.
