Brand： FOXBORO
Model number：FBM232
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.32kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:
FEATURES
Key features of the FBM232 are:
10 Mbps or 100 Mbps Ethernet network
transmission rate to/from field device
Communicates with up to 64 field devices
I/O software driver is downloadable from a library
of available protocols
Up to 2000 DCI block connections
Integrates field device data into an I/A Series
control database using Ethernet connectivity
Field mounted
Class G3 (harsh) environments.
OVERVIEW

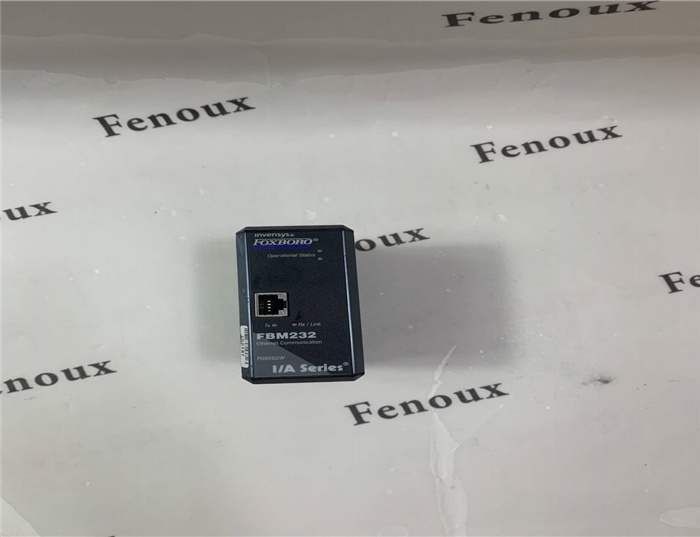

The FBM232 connects to a single 10 Mbps or
100 Mbps copper Ethernet network to communicate
with devices. The FBM232 is connected to Ethernet
switches or hubs in order to communicate with one
external device or up to 64 external devices.
The general network configuration is shown in
Figure 1.
ETHERNET HUBS AND SWITCHES
4-Port 10 Mbps Hubs for ISO/DIN Rail
The 4-Port 10 Mbps Industrial Hubs are DIN rail
mounted and support 10 Mbps Ethernet protocol
to/from devices that communicate at speeds of
10 Mbps. You can connect up to three Ethernet
devices using one 4-Port hub. Multiple hubs can be
interconnected to connect up to 64 devices to a
single FBM232.

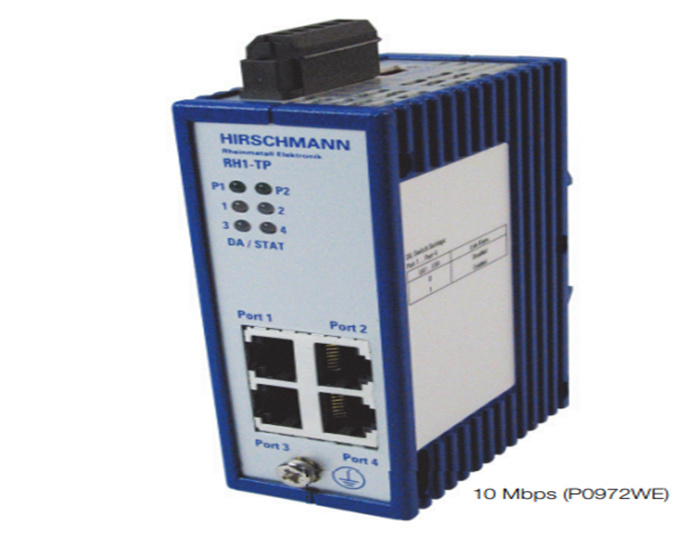

Figure 2. 4-Port,10 Mbps (P0972WE) Ethernet Hub
The hub mounts on an ISO/DIN rail and the 24 V dc
can be supplied redundantly from the FPS400-24 to
the hub.
A terminal block contains an integrated indicator
contact, receiving error and warning messages of the
hub which are defined as digital signals. These
signals, for example, can be utilized as process
messages when connected to a digital input FBM.
The indicator/contact becomes active as soon as
disturbances appear in the hub, that is, when a
power supply should fail or at least one twisted pair
port reports a faulty link status or has autopartitioned.
For
diagnosis there are LEDs available which indicate
fault, link status, segmentation, power and received
data.
