Brand：GE
Model number：531X308PCSADG1
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.27kg
Shipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service

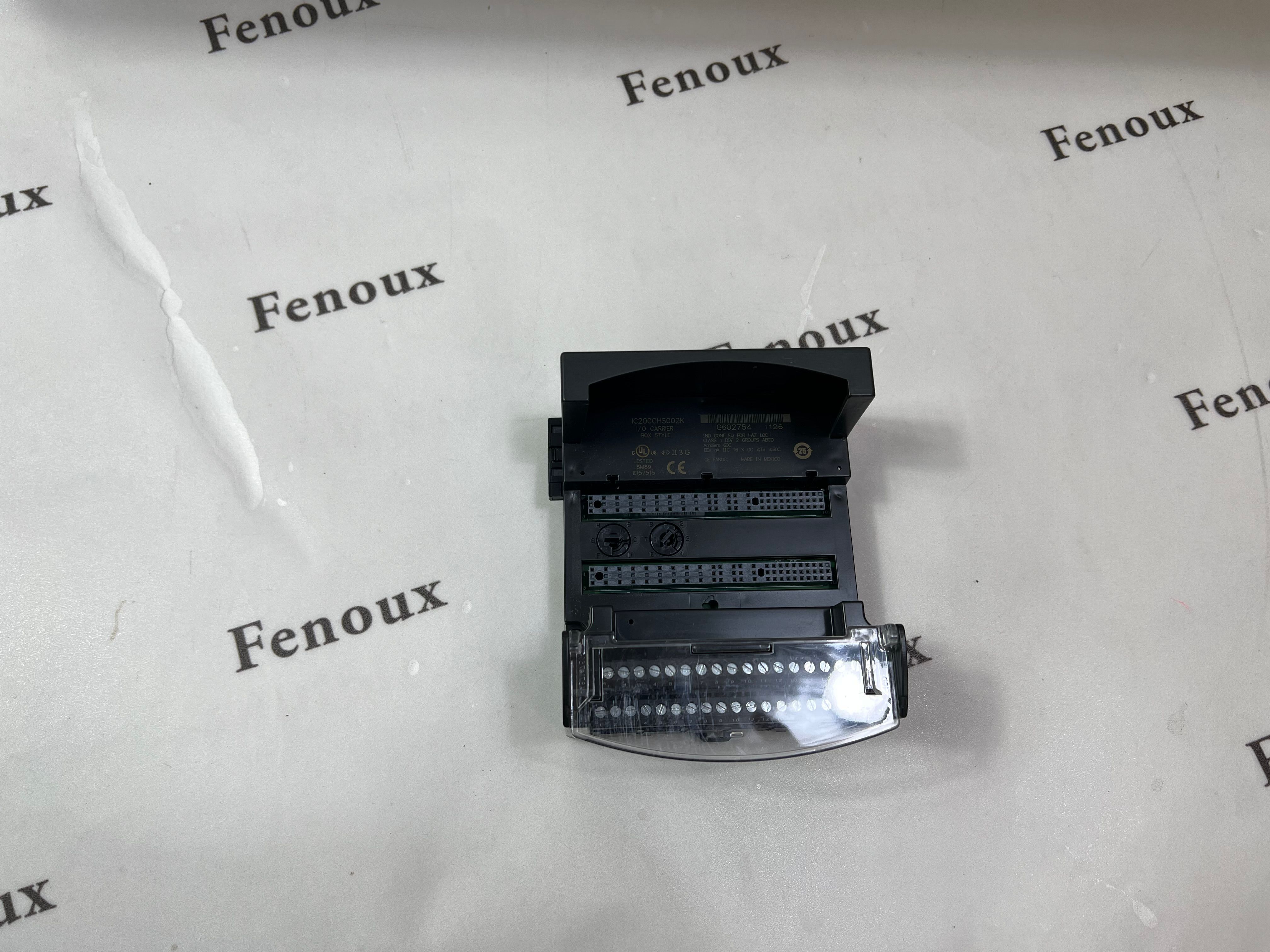

531X308PCSADG1 GE Input module Brand new
Thermocouple module fails to power up
correctly
After some power loss events, the Horner Thermocouple module
(HE697THM160) may fail to power up successfully. After failure, the
%AI data will not be updated correctly and will continue to return zero
values. There are no module fault indicators for this event. The user
should power cycle again to restore normal function.
Fault contacts on modules in expansion
rack
When an expansion rack powers up, the slot fault contacts will
prematurely indicate that the modules in the expansion rack are not
faulted before they complete their power up. Use I/O point fault
contacts to verify validity of the I/O.
Fault contacts on Remote I/O Station If multiple faults exist in a Series 90-70 Remote I/O Station and one of
them is corrected, a FAULT contact that uses the Remote I/O Station’s
module reference will incorrectly indicate that no faults exist at the
Remote I/O Station.
BIT_SEQ function block DIR parameter The BIT_SEQ Function Block should require the user to flow
BOOLEAN logic into the DIR parameter, but currently does not. If no
DIR parameter is present, the BIT_SEQ will increment by default.
WinLoader may stop operating On computers running Windows 2000 and using some versions of
Symantec Antivirus protection, WinLoader will fail if used in advanced
mode. Recovery requires cycling the computer's power.
Logic and HWC not equal after power cycle If the Hardware Config from Target 1, with Logic/Configuration Powerup Source and Data Source both set to “Always from Flash,” is stored
in Flash, then Logic and Hardware Config from Target 2, with
Logic/Configuration Power-up Source both set to “Always from RAM,”
is stored to RAM and there is a good battery, then when power is
cycled the programmer may show that Logic and Hardware Config are
not equal. The remedy is to clear Flash and then store the Logic and
Hardware Config from Target 2.
WinLoader does not detect PC COM port in
use when upgrading PACSystems CPU
WinLoader does not detect if a PC's COM port is already in use when
attempting to connect to a PACSystems CPU to perform a firmware
upgrade. If the port is already in use it displays the status "trying to
connect" followed by "waiting for target." To proceed with the upgrade,
press the "abort" button and disconnect the other application that is
using the COM port.
WinLoader does not display error when it
cannot connect serially with PACS CPU
WinLoader does not display an error message if it cannot connect to
the PACS CPU when attempting to connect to a PACSystems CPU to
perform a firmware upgrade. This occurs if the cable is physically not
connected to the CPU or if the CPU's serial port is not configured for
the same baud as WinLoader. In this case Winloader displays the
status "trying to connect" followed by "waiting for target." To proceed
with the upgrade, press the "abort" button and correct the cable or
baud rate setting.
