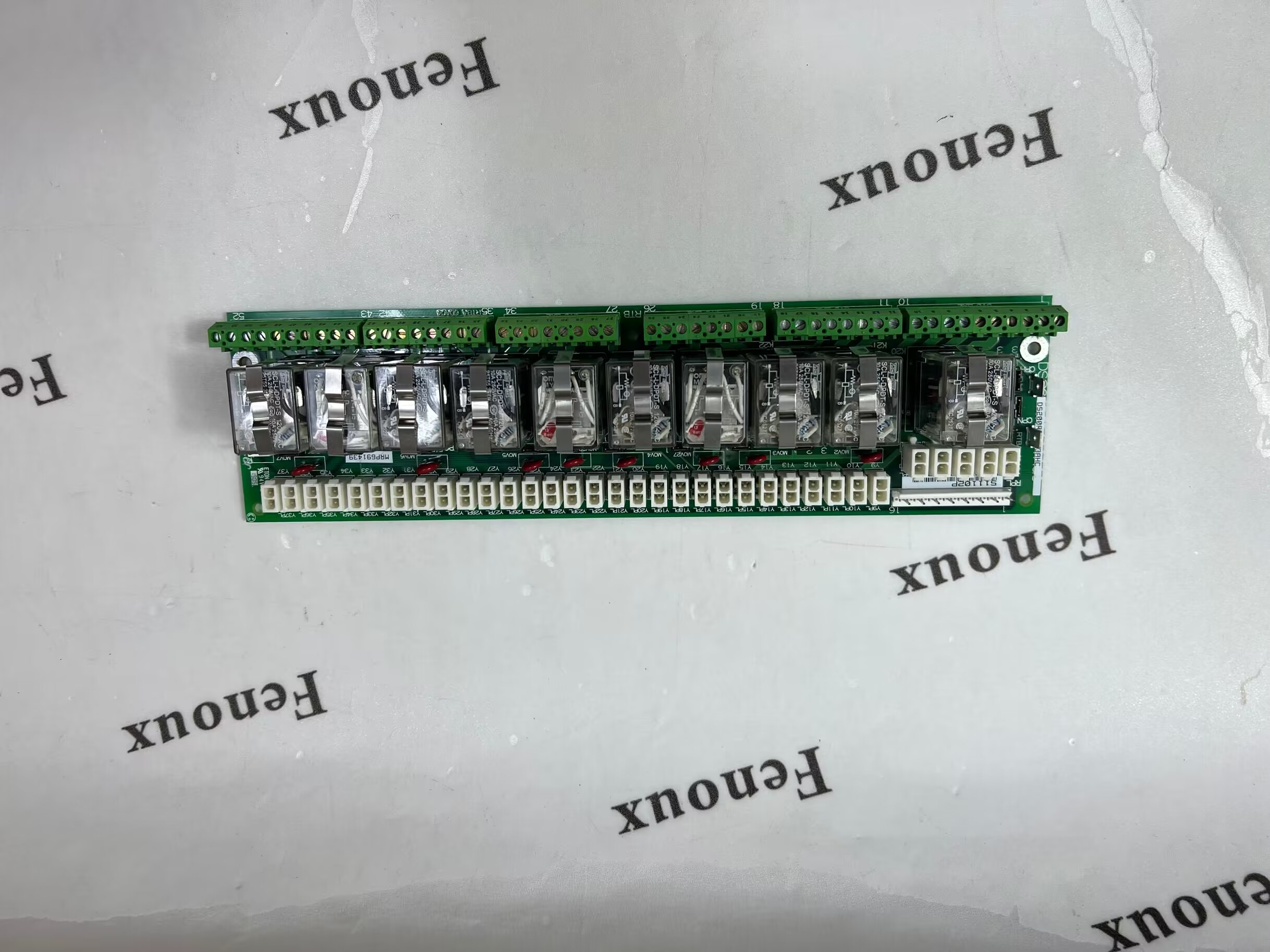

6KG1123010X1B1 GE Central control module Brand new

Hold down the RDSD UPLD button and turn power on to the CPE330. Continue to depress the RDSD UPLD button until the CPE330 powers up and displays one of the following patterns on the LEDs.

INQUIRE NOW

Products Name: 6KG1123010X1B1 GE Central control module Brand new

PRODUCT DESCRIPTION

Brand:GE

Model number:6KG1123010X1B1

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.27kg

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

6KG1123010X1B1  GE   Central control module Brand new




 Communication Coprocessor Module
restrictions
PACSystems RX7i CPUs with firmware versions 1.50 or later support
IC697CMM711 modules with firmware versions 4.20 or later. You
must ensure that you are using the correct firmware version of the
CMM because the CPU cannot check the CMM’s firmware version.
(The module’s firmware version can be found on a label attached to
the module’s EEPROM.)
PACSystems does not support the following for an IC697CMM711:
 Connecting to Machine Edition to the CPU through the CMM’s
serial ports.
 Access to Symbolic variables memory.
 WAIT mode COMMREQs.
 Permanent datagrams.
The following restrictions apply when using the IC697CMM711 with
PACSystems:
 Access to %W memory references is partially supported. Only
offsets 0—-65535 of %W can be accessed via the CMM.
 The Program Name is currently always LDPROG1 for
PACSystems.
 Reads and writes beyond currently configured reference table
limits will report a minor code error of 90
(REF_OUT_OF_RANGE) instead of F4 (INVALID_PARAMETER)
as reported on the Series 90-70.
 In case of ERROR NACK, the Control Program number, privilege
level and other piggyback status data will be set to 0.
 PACSystems CPUs return the major/minor type of the 90-70
CPX935 (major type 12, minor type 35) to the CMM scratch pad
memory when communicating with a CMM.
 Control Program Number will be returned as 01 in PACSystems
instead of FF as reported on the Series 90-70.
 If your RX7i application program needs to access the dual port
memory of a CMM, use the BUS READ and WRITE functions.
When accessing the CMM, set the Region parameter on the
function block to 1. (For the CMM, region 1 is predefined to be the
module's entire dual port memory.)
Note: For details on operation of the IC697CMM711, refer to the

Serial Communications User’s Manual, GFK-0582.


Discrete Input

Modules(1) IC200MDL140 Input 120 VAC (1 Group of 8) 8

Points IC200MDL631 Input 125 VDC Pos/Neg Logic

Isolated 8 Points

IC200MDL141 Input 240 VAC (1 Group of 8) 8

Points IC200MDL632 Input 125 VDC Pos/Neg Logic

Isolated 16 Points

IC200MDL143 Input 120 VAC Isolated 8 Points IC200MDL635 Input 48 VDC Pos/Neg Logic (2

Groups of 8) 16 Points

IC200MDL144 Input 240 VAC Isolated 4 Points IC200MDL636 Input 48 VDC Pos/Neg Logic (4

Groups of 8) 32 Points

IC200MDL240 Input 120 VAC (2 Groups of 8) 16

Points IC200MDL640 Input 24 VDC Pos/Neg Logic (2

Groups of 8) 16 Points

IC200MDL241 Input 240 VAC (2 Groups of 8) 16

Points IC200MDL643 Input 5/12 VDC Pos/Neg Logic (2

Groups of 8) 16 Points

IC200MDL243 Input 120 VAC Isolated 16 Points IC200MDL644 Input 5/12 VDC Pos/Neg Logic (4

Groups of 8) 32 Points

IC200MDL244 Input 240 VAC Isolated 8 Points IC200MDL650 Input 24 VDC Pos/Neg Logic (4

Groups of 8) 32 Points
