If the module is located in an RX3i Universal Backplane, an external source of isolated +24 VDC is required to provide power
for the module. The external source must be connected via the TB1 connector on the left side of the RX3i Universal
Backplane (IC695CHSxxx). For details on TB1, refer to “Universal Backplane Terminals (TB1)” in the PACSystems RX3i
System Manual, GFK-2314.

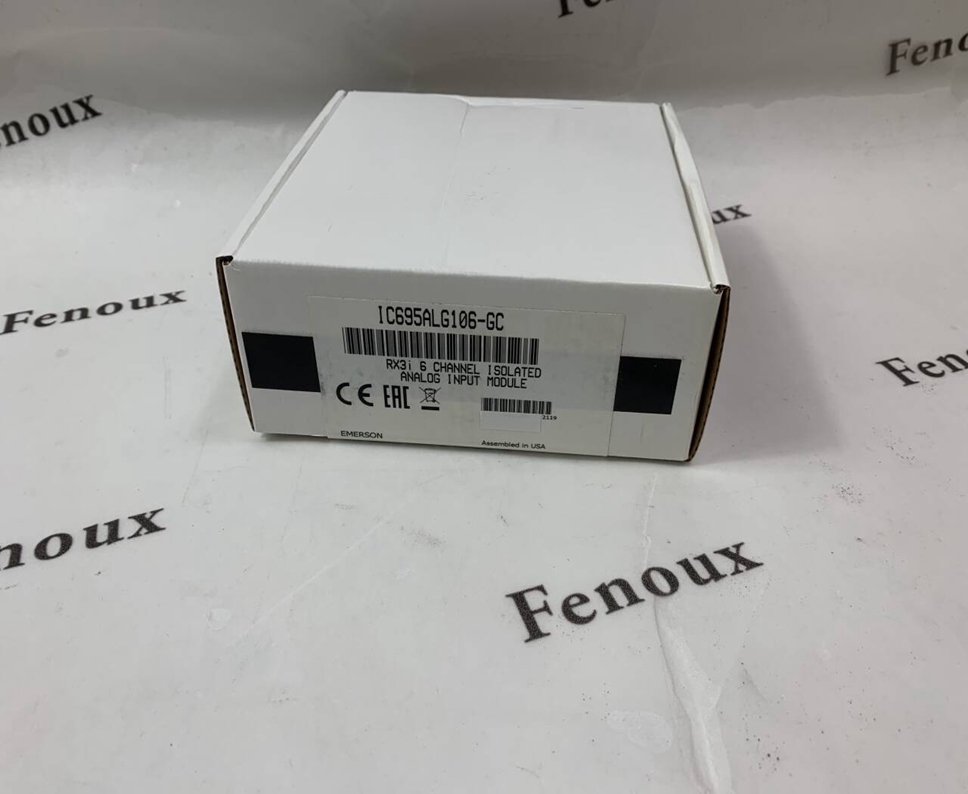

Isolated Analog Voltage/Current Input module IC695ALG106 provides 6 isolated input
channels. Isolated Analog Voltage/Current Input module IC695ALG112, shown at left,
provides 12 input channels.
Analog input channels can be configured for these ranges:
▪ Current: 0 to 20mA, 4 to 20mA, +/- 20mA
▪ Voltage: +/- 10V, 0 to 10V, +/- 5V, 0 to 5V, 1 to 5V
These modules must be located in an RX3i Universal Backplane. Modules IC695ALG106
and IC695ALG112 require an RX3i CPU with firmware version 5.0 or later. Machine Edition
Logic Developer-PLC Version 5.6 Service Pack 11 or later must be used for configuration.
These modules can be used with a Box-style (IC694TBB032), Extended Box-style
(IC694TBB132), Spring-style (IC694TBS032), or Extended Spring-style (IC694TBS132)
Terminal Block. Extended terminal blocks provide the extra shroud depth needed for
shielded wiring. See the PACSystems RX3i System Manual, GFK-2314 for more
information about Terminal Blocks. Terminal Blocks are ordered separately.
Module Features
▪ Completely software-configurable, no module jumpers to set
▪ On-board error-checking
▪ Open-circuit detection for all voltage and 4-20mA inputs
▪ Configurable scaling and offsets per channel
▪High alarm, low alarm, high-high alarm, low-low alarm detection and reportingselectable per channel
▪ Module fault reporting
▪ Supports diagnostic point fault contacts in the logic program
▪ Flash memory for future upgrades
▪ Positive and negative Rate of Change Alarms
▪ Configurable interrupts for channel alarms and faults
▪ Terminal Block insertion or removal detection
