Brand：GE
Model number：A02B-0198-B501
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.27kg
Shipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service

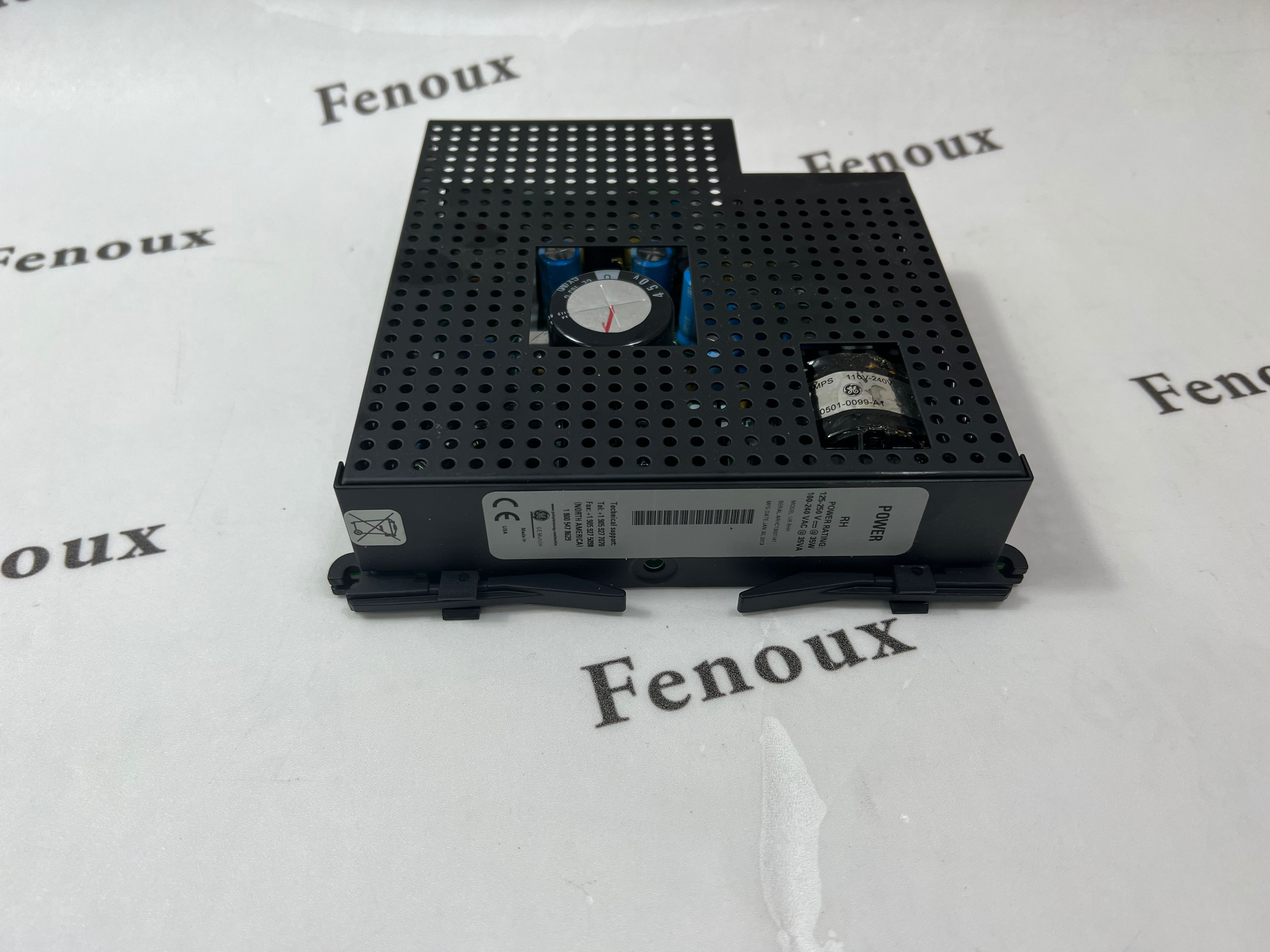

A02B-0198-B501 GE Central control module Brand new
The PACSystems* RX3i CPE330 is a richly
featured programmable controller CPU
equipped with a 1GHz dual-core
microprocessor, 64Mbytes of built-in
program memory and two independent
high-speed Ethernet interfaces. It is ideally
suited for multi-tier communications and for
synchronizing large amounts of data. Its
metal housing provides superior noise
immunity.
The CPE330 is programmed and configured
over Ethernet via GE’s Proficy* Machine
Edition (PME) software. It resides in the RX3i
main rack and supports all RX3i I/O and
Intelligent Option modules, up to 32K I/O
points.
• RX3i Hot Standby Redundancy CPU with
support for PROFINET I/O using
IC695PNC001 PROFINET Controllers.
• RX3i Hot Standby Redundancy with
Ethernet (EGD) & Genius I/O.
• Simplex PROFINET I/O Controller with
support for up to 32 I/O devices and update rates of 1 – 512ms. I/O device update rates
of 8ms and faster are possible with 16 or fewer devices. When there are more than 16
devices configured, update rates of 16ms and higher are available.
• Supports two independent 10/100/1000 Ethernet LANs. As shown in Figure 1, LAN1
attaches via the upper, dedicated RJ-45 connector. LAN2 attaches via the lower pair of
internally-switched RJ-45 connectors.
Discrete Input
Modules(1) IC200MDL140 Input 120 VAC (1 Group of 8) 8
Points IC200MDL631 Input 125 VDC Pos/Neg Logic
Isolated 8 Points
IC200MDL141 Input 240 VAC (1 Group of 8) 8
Points IC200MDL632 Input 125 VDC Pos/Neg Logic
Isolated 16 Points
IC200MDL143 Input 120 VAC Isolated 8 Points IC200MDL635 Input 48 VDC Pos/Neg Logic (2
Groups of 8) 16 Points
IC200MDL144 Input 240 VAC Isolated 4 Points IC200MDL636 Input 48 VDC Pos/Neg Logic (4
Groups of 8) 32 Points
IC200MDL240 Input 120 VAC (2 Groups of 8) 16
Points IC200MDL640 Input 24 VDC Pos/Neg Logic (2
Groups of 8) 16 Points
IC200MDL241 Input 240 VAC (2 Groups of 8) 16
Points IC200MDL643 Input 5/12 VDC Pos/Neg Logic (2
Groups of 8) 16 Points
IC200MDL243 Input 120 VAC Isolated 16 Points IC200MDL644 Input 5/12 VDC Pos/Neg Logic (4
Groups of 8) 32 Points
IC200MDL244 Input 240 VAC Isolated 8 Points IC200MDL650 Input 24 VDC Pos/Neg Logic (4
Groups of 8) 32 Points
