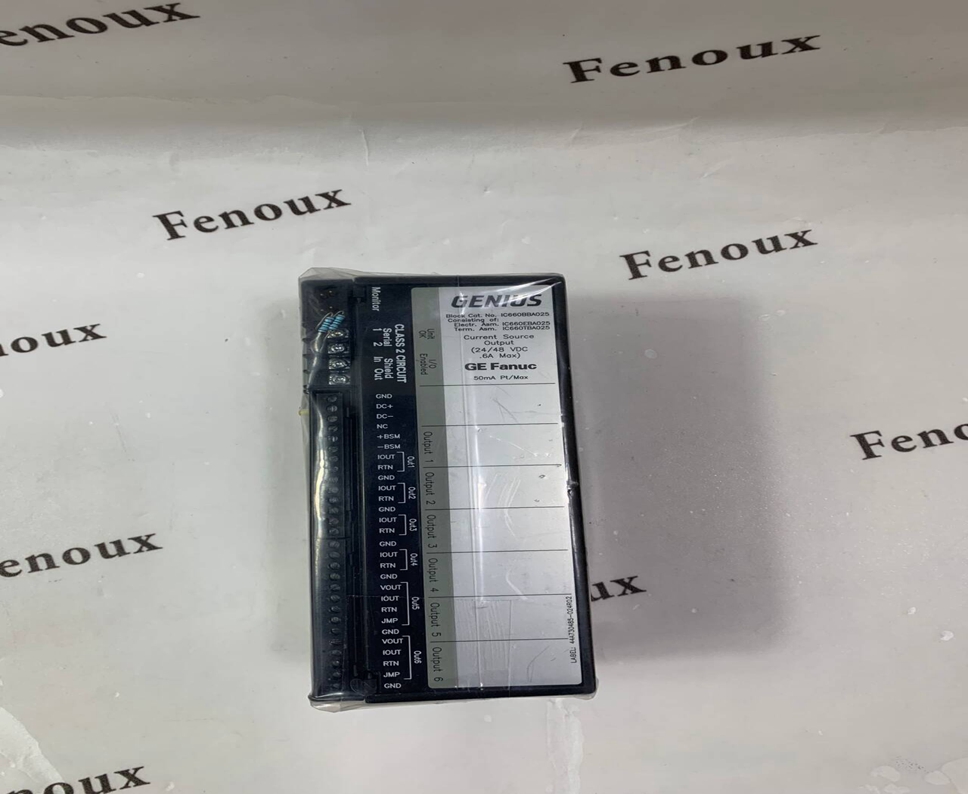

IC660EBA025L GE FANUC

Block features include:

Six 4-to-20 mA analog output circuits

No calibration required for operation

Software configurable

Advanced diagnostics

Dedicated Bus Switching Module control

These blocks provide power to all circuits; no separate power is

required for 4-20mA signals. Each output provides power and

control of a 4-to-20mA current loop. This power is isolated from the

rest of the block. The outputs and BSM circuitry are electrically

common. Output accuracy is 0.15% at 25°C. Output resolution is

6µA.

The block has a dedicated digital output that can be used to drive a

Bus Switching Module (IC66*BSM012 only). The outputs and BSM

circuitry are electrically common.

Configurable features of these blocks include:

Output Hold Last State or default

Circuit scaling to engineering units values

Output feedback checking and feedback time

CPU Redundancy

Fault reporting can be enabled or disabled circuit-by-circuit. These

blocks automatically perform the following diagnostic checks:

Output Overrange and Underrange

Output Feedback
