Brand：GE

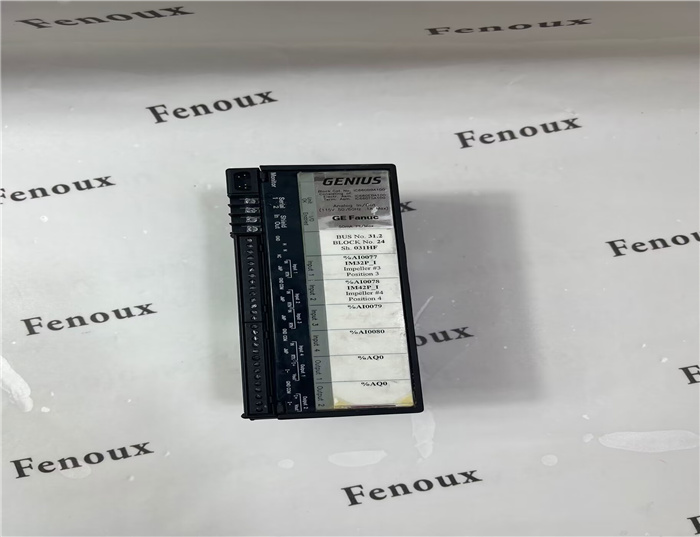

Model number：IC660TSA100K
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.56kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:
Grounding
The block’s mounting screws must not be used as the only means of
grounding the block. Connect the green ground screw on the block to a
reliable ground system using a short wire lead, minimum size AWG #12
(avg 3.3mm2 in cross-section).
Warning
If mounting screws do not make good ground connection and the
ground screw is not connected to a reliable ground, the block is not
grounded. Electrical shock hazard exists. Death or personal injury
may result.

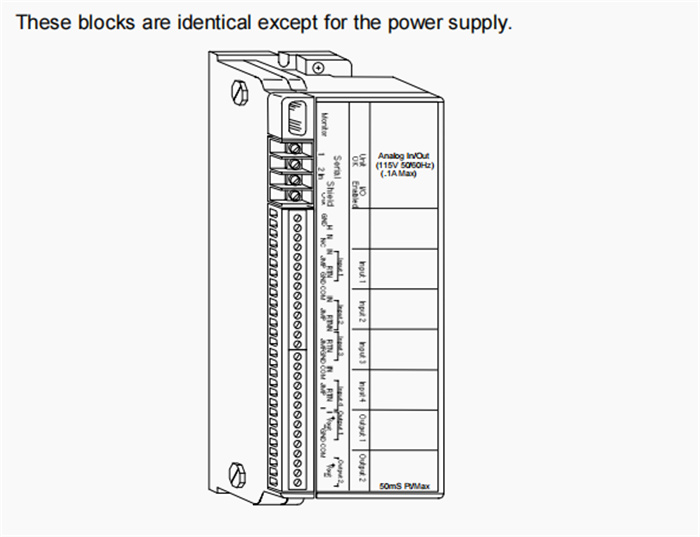

Block Wiring _________________________________
Do not overtorque the terminal screws. Recommended torque for all
terminals is 6 in/lb (.678 N/M).
Serial Bus Wiring
Terminals 1 to 4 are for the serial bus. These terminals accept one
AWG #12 wire (avg 3.3mm2
cross-section) or two AWG #14 wires
(each avg 2.1mm2
in cross-section). The minimum recommended wire
size is AWG #22 (avg .36mm2
in cross-section).
Terminals 1 - 4 can also accommodate spade or ring terminals up to
0.27 inch (6.85mm) wide with a minimum opening for a #6 screw, and up
to 0.20 inch (5.1mm) depth from the screw center to the back barrier.
Be sure unshielded wire ends are not longer than 2 inches (5 cm).
If current mode (4-20mA) is used for an input without an external
resistor, connect a jumper from the terminal marked JMP to the terminal
marked RTN for that circuit.
If an input current device operates outside the 4-20mA range, connect a
resistor across the voltage inputs. For example, to measure 10mA to
50mA current loop signals, install a 100 ohm resistor.
If current mode is used for an output circuit, use the terminals marked I+
and I-. For outputs set up in current mode, the block’s internal power
supply can be used to drive loads up to 300 Ohms per output. For loads
up to 2K Ohms, use an external power supply. Connect the positive
lead of the external supply to one side of the load, and the negative lead
of the external supply to block common on terminal 29. If the external
supply is between 24V and 50V, you can use terminal 25 or 30 as a tie
point for the positive connection. This point will be disconnected from the
external supply by a reverse biased diode.
