IC693CPU313LT GE

IC693CPU313LT   GE   IPC COM Port

Brand:GE

Model number:IC693CPU313LT

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.27kg

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

IC693CPU313LT   GE


INQUIRE NOW

Products Name: IC693CPU313LT GE

PRODUCT DESCRIPTION

 When making communication between an External Device and COM port on the Expansion slot,

only RS-232C is supported. However, ER (DTR/CTS) control cannot be executed because of the

specification of COM port.

For connection with External Device, use user-created cables and disable Pin Nos. 1, 4, 6 and 9.

Please refer to the IPC manual for details of pin layout.

 IC693CPU313LT   GE

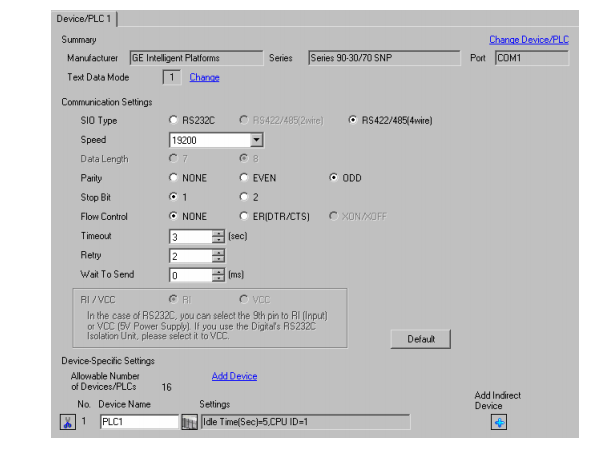

 When setting up communication between an External Device and the RS-232C/422/485 interface

module, use the IPC (RS-232C) or PS5000 (RS-422/485) cable diagrams. However, when using

PFXZPBMPR42P2 in a RS-422/485 (4-wire) configuration with no flow control, connect 7.RTS+

and 8.CTS+, and connect 6.RTS- and 9.CTS-.

When using RS-422/485 communication with External Devices, you may need to reduce the

transmission speed and increase the TX Wait time.

*6 To use RS-422/485 communication on the RS-232C/422/485 interface module, the DIP Switch

setting is required. Please refer to "Knowledge Base" (FAQs) on the support site. (http://www.proface.com/trans/en/manual/1001.html)

*7 Set up the SIO type with the DIP Switch. Please refer to the IPC manual for details of DIP Switch.

*8 For the connection with the External Device, on the user-created cable read as if the connector on

the Display-side is a M12 A-coding 8 pin socket. The pin assignment is the same as described in

the cable diagram. For the M12 A-coding connector, use PFXZPSCNM122.

DIP Switch Setting Description

1 OFF*1

*1 When using PS-3450A, PS-3451A, PS3000-BA and PS3001-BD, turn ON the set value.

Reserved (always OFF)

2 OFF

SIO type: RS-232C

3 OFF

4 OFF Output mode of SD (TXD) data: Always output

5 OFF Terminal resistance (220W) insertion to SD (TXD): None

6 OFF Terminal resistance (220W) insertion to RD (RXD): None

7 OFF Short-circuit of SDA (TXA) and RDA (RXA): Not available

8 OFF Short-circuit of SDB (TXB) and RDB (RXB): Not available

9 OFF

RS (RTS) Auto control mode: Disabled


Discrete Input

Modules(1) IC200MDL140 Input 120 VAC (1 Group of 8) 8

Points IC200MDL631 Input 125 VDC Pos/Neg Logic

Isolated 8 Points

IC200MDL141 Input 240 VAC (1 Group of 8) 8

Points IC200MDL632 Input 125 VDC Pos/Neg Logic

Isolated 16 Points

IC200MDL143 Input 120 VAC Isolated 8 Points IC200MDL635 Input 48 VDC Pos/Neg Logic (2

Groups of 8) 16 Points

IC200MDL144 Input 240 VAC Isolated 4 Points IC200MDL636 Input 48 VDC Pos/Neg Logic (4

Groups of 8) 32 Points

IC200MDL240 Input 120 VAC (2 Groups of 8) 16

Points IC200MDL640 Input 24 VDC Pos/Neg Logic (2

Groups of 8) 16 Points

IC200MDL241 Input 240 VAC (2 Groups of 8) 16

Points IC200MDL643 Input 5/12 VDC Pos/Neg Logic (2

Groups of 8) 16 Points

IC200MDL243 Input 120 VAC Isolated 16 Points IC200MDL644 Input 5/12 VDC Pos/Neg Logic (4

Groups of 8) 32 Points

IC200MDL244 Input 240 VAC Isolated 8 Points IC200MDL650 Input 24 VDC Pos/Neg Logic (4

Groups of 8) 32 Points
