Brand：GE
Model number：IC693PWR331
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.42kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:

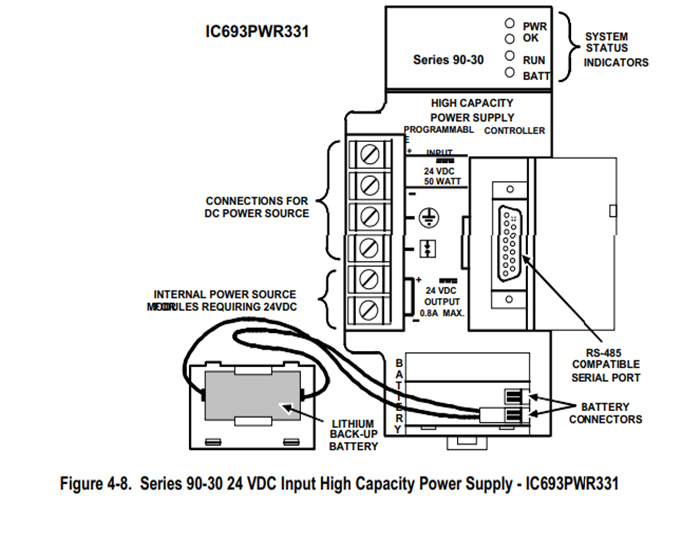

IC693PWR331 High Capacity Power Supply, 24 VDC Input
The Series 90-30 DC input High Capacity power supply (IC693PWR33) is a 30 watt wide range
supply designed for 24 VDC nominal inputs. For applications requiring greater +5V current
capacity than is available with the standard supply, this supply allows all 30 watts to be consumed
from the +5 V output. It will accept an input voltage range from 2 VDC to 30 VDC. Although it
is capable of maintaining all outputs within specifications with input voltages as low as 2 VDC, it
will not start with initial input voltages of less than 8 VDC. This power supply provides the
following outputs:
Ŷ +5 VDC output.
Ŷ +24 VDC Relay power output which provides power to circuits on Series 90-30 Output Relay
modules.
Ŷ Isolated +24 VDC, which is used internally by some modules, can also be used to provide
external power for 24 VDC Input modules.
The load capacity for each output of this power supply is shown in the following table.
Calculating Input Power Requirements for IC693PWR331
Use the following procedure to determine input power requirements for the 24 VDC High Capacity
Power Supply:
Ŷ Determine total output power load from typical specifications listed for
individual modules at the end of this chapter.
Ŷ Multiply the output power by .5 to determine the input power value.
Ŷ Divide the input power value by the operating source voltage to determine the
input current requirements
Ŷ Use the lowest input voltage to determine the maximum input current
Ŷ Allow for start-up surge current requirements
Ŷ Allow margins (0% to 20%) for variations
