IC698PSA100 GE FANUC High-density Terminal Blocks

INQUIRE NOW

Products Name: IC698PSA100 GE FANUC High-density Terminal Blocks

PRODUCT DESCRIPTION

Brand：GE

Model number：IC698PSA100

Colour：new

Warranty: 12 months

Lead Time：3-day working day

Country of origin: USA Price: Please contact us

Product weight：0.42kg

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Description:

Terminal Block Assembly

1. Press the terminal block assembly

straight toward the module until it

is partially seated.

2. Open the door on the front of the

terminal block and push the latch

(see below) up very firmly until it

reaches the top of the slot and

clicks into place.

3. Check to be sure the terminal

block is fully seated.

Removing a High-density Terminal

Block from the Module

1. Open the terminal block door.

2. Push the latch down as shown at left very

firmly until the terminal block is released.

3. Pull the terminal block away from the

module until the contacts have separated.

Removing a Terminal Block from its

Cover

To remove a Terminal Block from its cover:

1. Grasp the sides of the Terminal Block cover.

2. Pull down on the bottom of the Terminal Block.

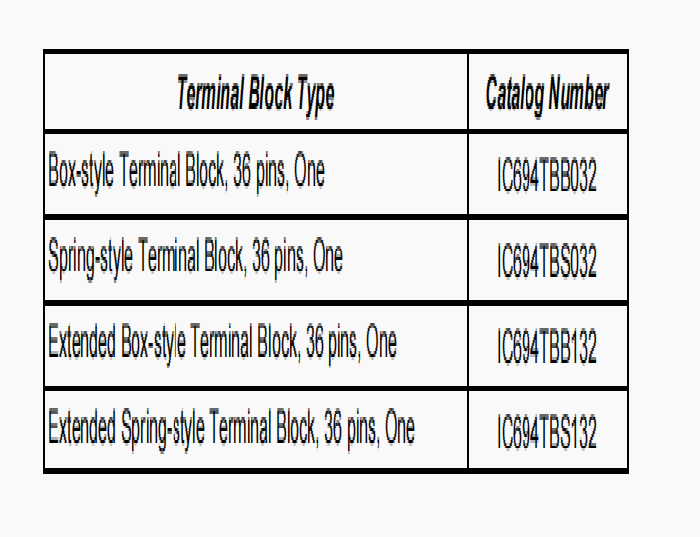

Extended High-Density Terminal Blocks IC694TBB132 and IC694TBS132 are functionallyidentical to High-Density Terminal Blocks IC694TBB032 and IC694TBS032. The Extended

High-Density Terminal Blocks have an outer cover that is approximately ½-inch (13mm) deeper,

to accommodate wires with thicker insulation, such as that typically used with AC I/O modules.

13mm

(0.5 inch)

The diagram below compares the

space for wiring on a High-Density

Terminal Block (left) and an

Extended High-Density Terminal

Block (right), seen from the bottom

of the module.

IC697PWR711 GE FANUC High-density Terminal Blocks

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
