IC755CSW07CDA GE FANUC High-density Terminal Blocks

INQUIRE NOW

Products Name: IC755CSW07CDA GE FANUC High-density Terminal Blocks

PRODUCT DESCRIPTION

Brand：GE

Model number：IC755CSW07CDA

Colour：new

Warranty: 12 months

Lead Time：3-day working day

Country of origin: USA Price: Please contact us

Product weight：0.31kg

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Description:

Extended High-Density Terminal Blocks IC694TBB132 and IC694TBS132 are functionallyidentical to High-Density Terminal Blocks IC694TBB032 and IC694TBS032. The Extended

High-Density Terminal Blocks have an outer cover that is approximately ½-inch (13mm) deeper,

to accommodate wires with thicker insulation, such as that typically used with AC I/O modules.

The diagram below compares the

space for wiring on a High-Density

Terminal Block (left) and an

Extended High-Density Terminal

Block (right), seen from the bottom

of the module.

Box-style Terminal Blocks, IC694TBB032 and

IC694TBB132, are used with high-density PACSystems

RX3i modules and equivalent Series 90-30 PLC modules.

These terminal blocks provide 36 screw terminals for field

wiring to the module.

Terminal Blocks IC694TBB032 and TBB132 are

functionally identical. Terminal Block IC694TBB032 comes

with a standard-depth outer cover. When installed, it is the

same depth as most other PACSystems and Series 90-30

PLC modules.

Extended Terminal Block IC694TBB132 comes with an

outer cover that is approximately ½-inch (13mm) deeper

than Terminal Block IC694TBB032, to accommodate wires

with thicker insulation, such as that typically used with AC

I/O modules.

Specifications: TBB032 and TBB132

Torque 7 lb-in

Wire strip length 0.310 inches (7.87 mm)

Wire gauges supported #14-26 AWG (solid or stranded)

Connecting Field Wiring to a Box-Style High-density Terminal Block

The bottom of the terminal block can be used as a gauge for the wire strip length, as shown

below. The stripped wire must be fully-inserted into the terminal block so that the insulation

meets the stop position inside the terminal, and the end of the wire is bent. Tightening the

terminal screw raises the wire and clamps it in place.

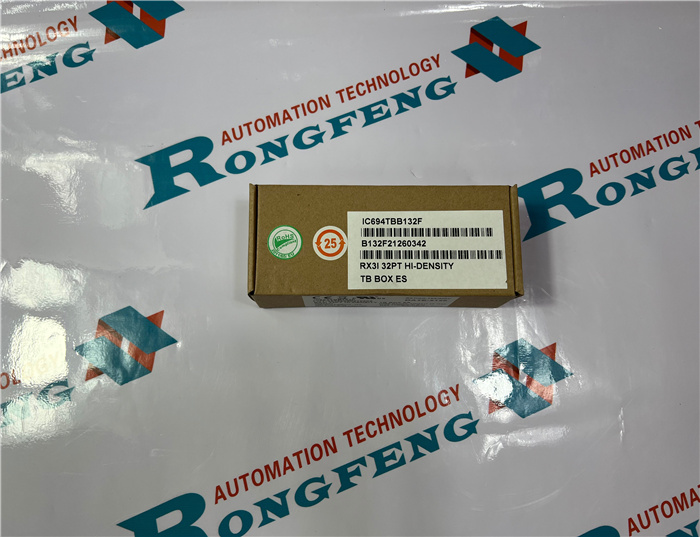

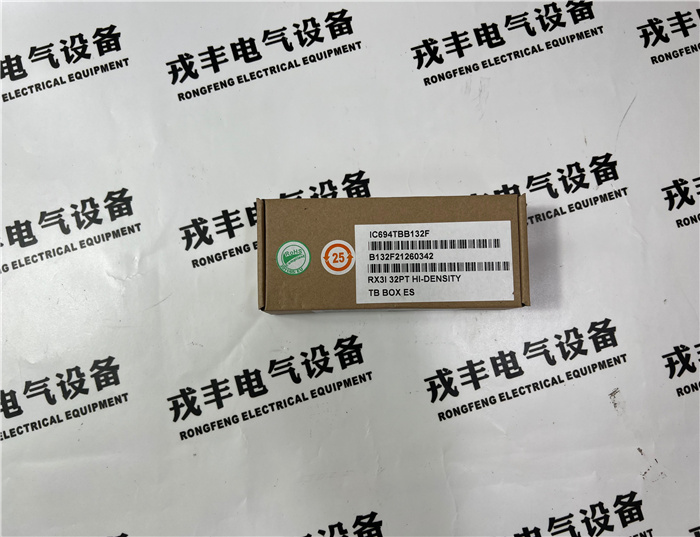

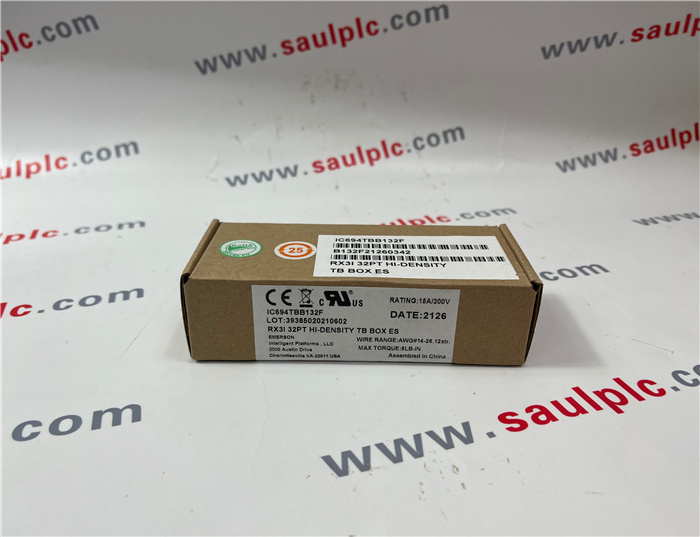

IC694TBB132F GE FANUC High-density Terminal Blocks
