Description:
Application and general description

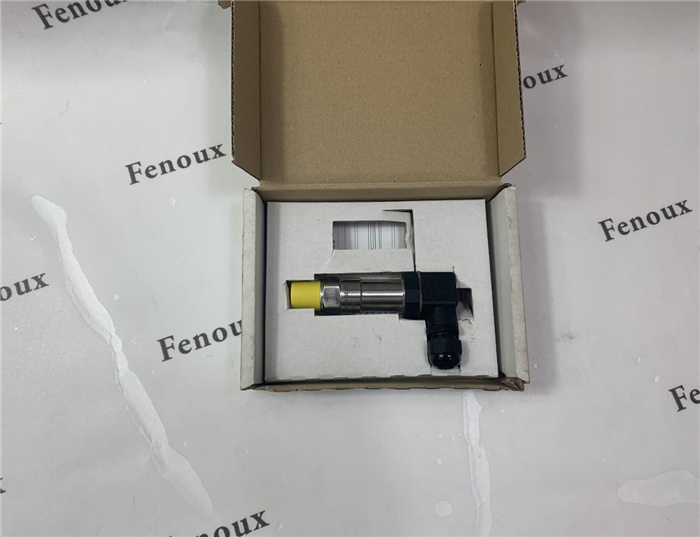

The GT300 Pressure Transmitter is a generalpurpose transmitter for use in engine rooms and
other similar applications. The transmitter is
available as gauge and sealed gauge. With pressure
ranges up to 100 bar, and a 2-wire connection, 4 to
20 mA ouput signal.
Mechanical design
The transmitter consists of a sensing element
together with an electronic unit encapsulated in the
sensor body. Pressure connection is made via
ISO228-G1/2A or ISO228-G1/4A at the lower end,
and electrical connection is made via a DIN
connector at the upper end of the transmitter. The
body is made of acid resistant steel. See Fig. 2.
Pressure sensing capsule
The pressure transmitter is built around a dry,
robust sensor element, made of ceramic, with
internal strain gauge Wheatstone-bridge as a
converting element between pressure and electrical
signal. The signal given by this strain gauge is then
digitized and stored together with known applied
pressure and temperature. All this together forms a
unique tabular for each sensor, which is kept in
sensor memory for the sensor’s lifetime. This
digital compensation gives a possibility for
linearization and temperature
Installation
As this is a general-purpose transmitter, normal
installation rules must be followed. The pressure
transmitter is designed to be mounted vertically.
The transmitter can be mounted directly to a stud
welded to the measuring point, or it can be
mounted on a wall with a control valve and
connected to the measuring point by a tube.
Standard pressure connection is ISO228-G1/2A or
ISO228-G1/4A threads, and electrical connection
is made via a cable gland on the connector.
Power supply
Power supply to the transmitter is 24 VDC
nominal, and can vary from 12 to 32 V. The
allowable load resistance is determined by the

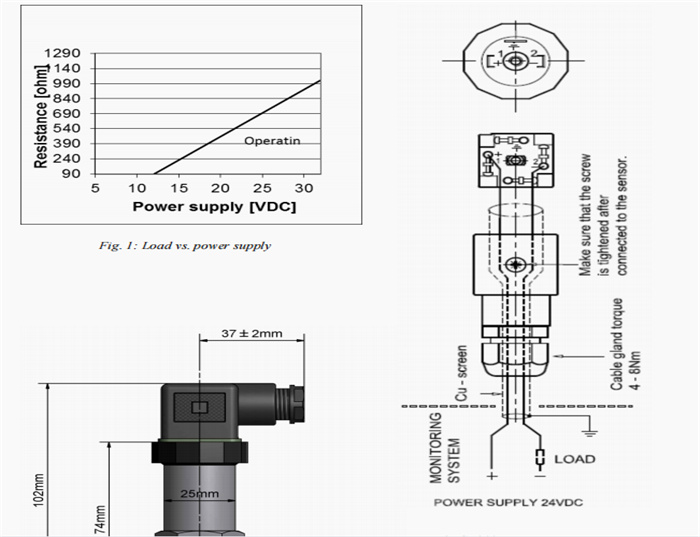

minimum power supply, see Fig. 1.
Electrical connection
A CU-screened cable, with intact screen, must
always be used from the transmitter to the
monitoring system where the Cu-screen must be
grounded at the monitoring side. Minimum cross
cable is 2 x 0.5 mm
. Terminate + (plus) to
terminal 1 and – (minus) to terminal 2, see Fig. 3.
