METSO PDP401

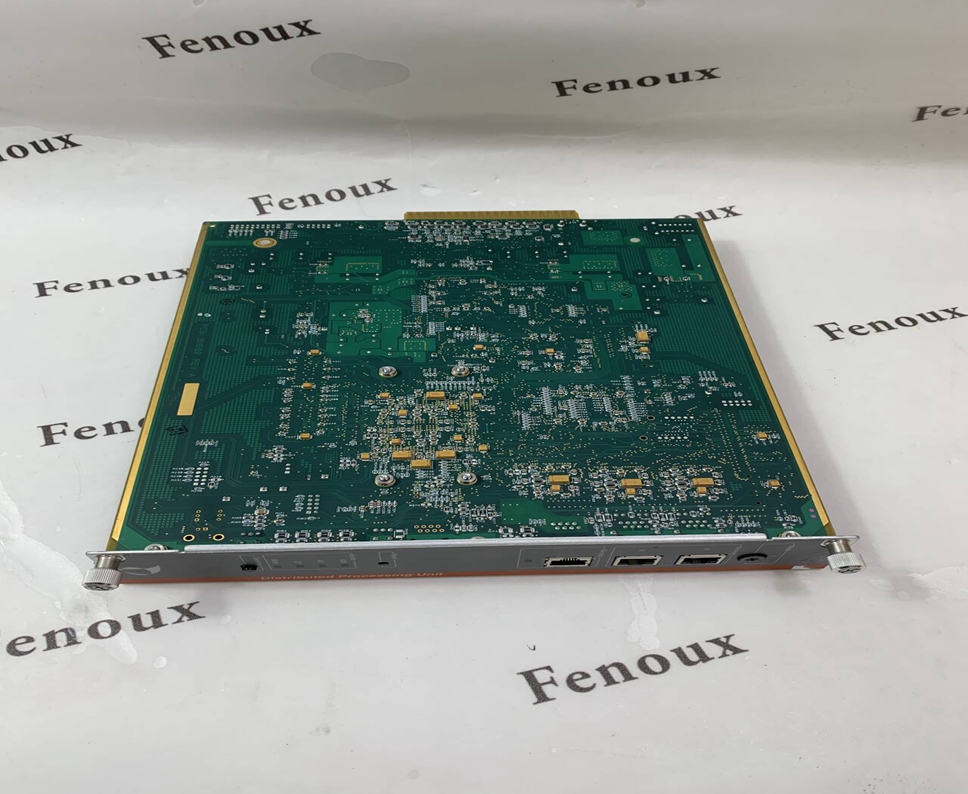

A DPU consists of a printed circuit board containing the Control Processor

and Input/Output Processor (IOP) and is installed in a maxPAC chassis. The

DPU’s front panel contains status LEDs, a MODE Switch, Backup

Connector, Network Connectors, and takeover and reset buttons. An

optional assembly also contains a Serial Port Connector for interface to PLCs

and a BNC Connector for interface to an IRIG-B time source. See "Front

Panel Controls and Features," later in this chapter.

Description:

The Model PDP Distributed Processing Unit (DPU), which runs under the

Windows CE.net real-time multitasking operating system, is the hardware

processing engine of the maxDNA distributed control system. The DPU

performs primary data acquisition, control, and data processing functions.

The DPU, also known as maxDPU4F, is a self-contained microprocessorbased, rack-mounted unit, which occupies a single slot in a Remote

Processing Unit cabinet using an 8-wide maxPAC backplane. It is designed

to operate with user-defined combinations of maxDNA Model IOP

Input/Output Modules, and to communicate with other devices, such as

Programmable Logic Controllers and Remote Terminal Units.

As a station on maxNET, the DPU scans and processes information for use

by other devices in the maxDNA system. Each DPU performs:

• Comprehensive alarming and calculations.

• Logging of Sequence of Events (SOE) data at 1 millisecond resolution.

• Acquisition of trend information.

• Continuous scanning of Model IOP I/O modules.

• Execution of predefined algorithms, called Function Blocks, for process

control and data acquisition.
