MP1250 MM0249211 Metso

As with any Neles pneumatic/hydraulic actuator, adjustable travel stops are standard for both the open and closed

positions. End of stroke turning angle range is 85° to 95°.

Optional travel stops 0° to 90° are also available.

Wear resistant bearings

High quality bearings provide support on the upper and

lower portions of the lever arm to reduce friction and

expand the life of both the lever arm and the housing.

Corrosion resistance

Description:

The epoxy painted actuators have housings of rugged

cast iron, with light-weight aluminum cylinders anodized

for added corrosion resistance. Travel stops are stainless

steel.

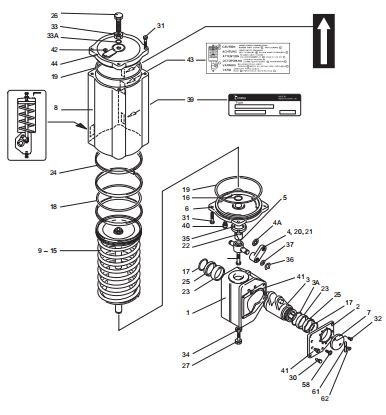

Self-contained spring cartridge

The springs in the B1J actuator are contained in a cartridge for added reliability and easy maintenance.

Spring to open or close capability

The standard spring return actuator on the ball valve can

provide spring-to-close or spring-to-open operation simply by changing the mounting position by 90°. On a high

performance butterfly valve, the standard unit offers

spring-to-close operation. An optional B1JA model is

available for spring-to-open requirements.

High-and-low temperature construction

The standard unit can be used in temperatures up to 70 °C

(158 °F). High temperature construction is available for

temperatures up to 120 °C (248 °F). The standard unit can

be used down to -20 °C (-4 °F). A low temperature design

is available for -40° to +70 °C (-40° to 158 °F ), arctic service

please refer type coding.

High cycle option

For applications where very fast and high sequency operation is required.

ATEX compatibility

Actuator construction ATEX approved.

Oversized cylinder options

The oversized cylinders (B1C 60, 75, 602, 752) are used

whenever the supply pressure is limited, thus the actuators can achieve the required torques with a lower supply

pressure level.

Override options

Available override devices include a manual centerpiece

handle, a manual handwheel override, and a manual

hydraulic override for high torque applications.

Emergency shut-down

Emergency Shut-Down (ESD) valves utilizing B1J actuators are offered to assure operation in the event of a fire or

plant malfunction. The ESD device enables valve operational testing without cycling, see bulletin 6B21.
