V120-22-T2C unitronics

Unused pins should not be connected. lgnoring this directive maydamage the controller.

Improper use of this product may severely damage the controller.Refer to the controller's User Guide regarding wiring considerations.Before using this prduct, it is the responsibility of the user to read theproduct's User Guide and all accompanying documentation.

Description:

Notes:

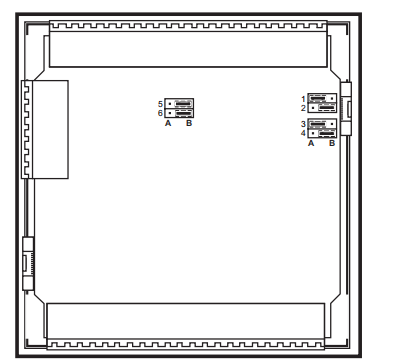

1. All 12 inputs can be set to pnp (source) or npn (sink) via a single jumperand appropriate wiring.

2. inputs #10 and #11 can function as either digital inputs or as analog inputs,via a single jumper and appropriate wiring.3. All 12 inputs can function in 12 VDC or 24 VDC; set via a singlejumper and appropriate wiring.

4. npn (sink) inputs use voltage supplied from the controller's power supply.5. Inputs #0, #2 and #4 can each function as either high-speed counter oras part of a shaft encoder. In each case, high-speed input specificationsapply. When used as a normal digital input, normal input specificationsapply.

6. Inputs #1, #3 and #5 can each function as either counter reset. or as anormal digital input; in either case, specifcations are those of a nomaldigital input.These inputs may also be used as part of a shaft encoder.In this case, high-speed input specifications apply.
