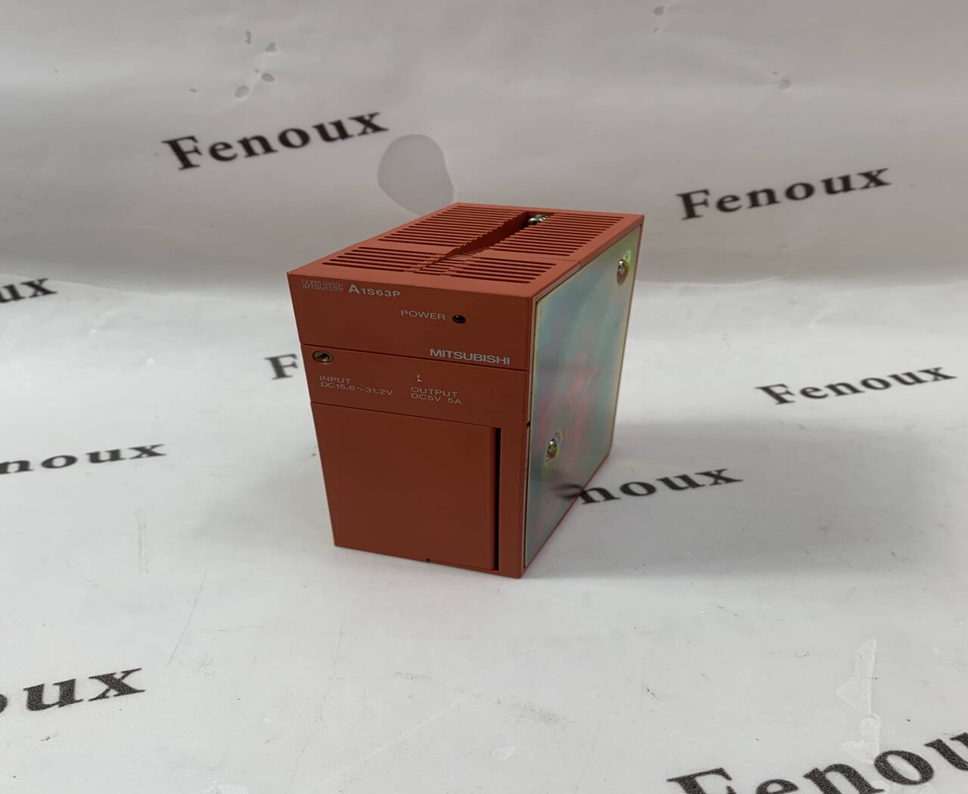

Mitsubishi A1S63P

 • The QA1S6ADP is a CE-marked product. To comply with the EMC Directive, the

extension base units and modules used in combination with the QA1S6ADP must

be CE-compliant as well.

 • Do not install the control lines or communication cables together with the main

circuit lines or power cables. Keep a distance of 100mm or more between them.

Failure to do so may result in malfunction due to noise.

Description:

Applicable CPU modules

The following CPU modules support the connection with the QA1S6ADP+A1S5B/A1S6B.

 • High Performance model QCPU

 • Universal model QCPU with a serial number (first five digits) of "13102" or later

Base unit connection

 • The QA1S6ADP+A1S5B/A1S6B can be connected to the main base unit only.

 • When the QA1S6ADP+A1S5B/A1S6B is used, the number of extension base units is

limited to one.

Software

 • The number of slots of the QA1S6ADP+A1S5B/A1S6B is always displayed as eight in GX

Works2 or GX Developer, regardless of the actual number of slots of the extension base unit

where the QA1S6ADP is mounted.

 • Batch assign I/O numbers to the modules by the series, in order of "Q series  AnS series" or

"AnS series  Q series". If not, an error (SP.UNITLAY ERR) occurs. Assign I/O numbers so

that they do not overlap.

Restricted functions

The QA1S6ADP+A1S5B/A1S6B cannot be connected to a MELSECNET/H remote I/O

station.

The QA1S6ADP+A1S5B/A1S6B cannot be bus-connected with GOT.
