National Instruments PCI-6703

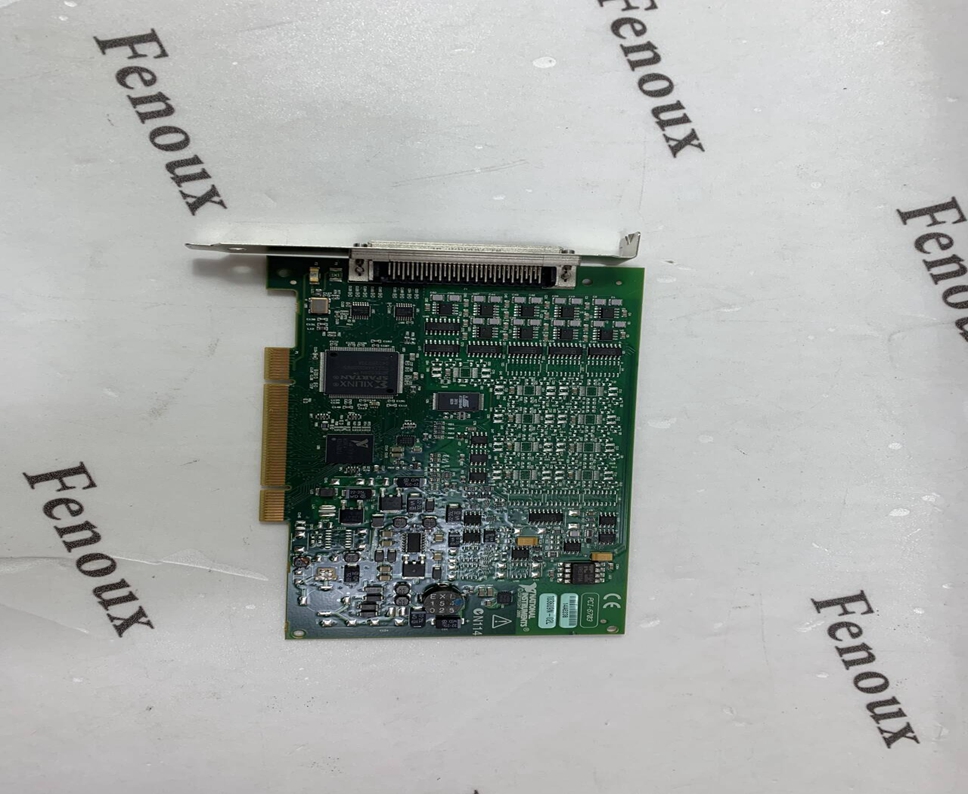

National Instruments  PCI-6703 Static analog output card

Brand:  National Instruments

Model number:PCI-6703

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.19kg

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

National Instruments  PCI-6703 Static analog output card


INQUIRE NOW

Products Name: National Instruments PCI-6703

PRODUCT DESCRIPTION

Follow these guidelines if you want to develop your own cable:

• Route the analog lines separately from the digital lines.

• When using a cable shield, use separate shields for the analog and

digital halves of the cable. Failure to do so results in noise coupling

into the analog signals from transient digital signals.

National Instruments offers cables and accessories for you to

prototype your application or to use if you frequently change module

interconnections. For more specific information about these products, visit ni.com/products.

For more information on the connectors used for DAQ devices, refer to the KnowledgeBase document, Specifications and Manufacturers for Board Mating Connectors at ni.com/support.

National Instruments  PCI-6703

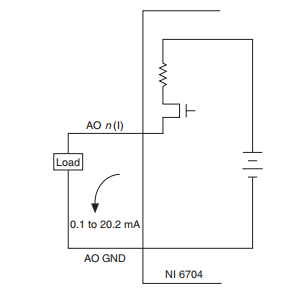

This section describes how to make connections for voltage and current outputs. The NI 6704 has both voltage and current outputs. The NI 6703 has voltage outputs only. A 68-pin cable such as the SH68-68-D1 cable is required. Figure 2-3 shows how to connect the voltage channel as a voltage

output.

You can connect a floating load to your NI 6703/6704 device at the voltage output channel.Caution Because NI 6703/6704 devices are not electrically isolated from high voltages, a load with high common-mode voltages can damage the devices. National Instruments is not liable for any damages resulting from any such signal connections.

The NI 6703/6704 device has a bipolar voltage range of –10.1 to +10.1 V. Maximum load current is ±10.1 mA for 16-bit linearity.

Power-On State

All voltage outputs are at their user-defined values to full accuracy within 1 s of power-on board reset. Before this time, the voltage outputs can float to unspecified values. Take this behavior into account when connecting external devices to the NI 6703/6704.
