CDAQ-9188 NI Controller module Brand new

Warranted specifications describe the performance of a model under stated operating

conditions and are covered by the model warranty.

Characteristics describe values that are relevant to the use of the model under stated operating

conditions but are not covered by the model warranty.

• Typical specifications describe the expected performance met by a majority of the

models.

• Nominal specifications describe parameters and attributes that may be useful in operation.

Specifications are Typical unless otherwise noted.

INQUIRE NOW

Products Name: CDAQ-9188 NI Controller module Brand new

PRODUCT DESCRIPTION

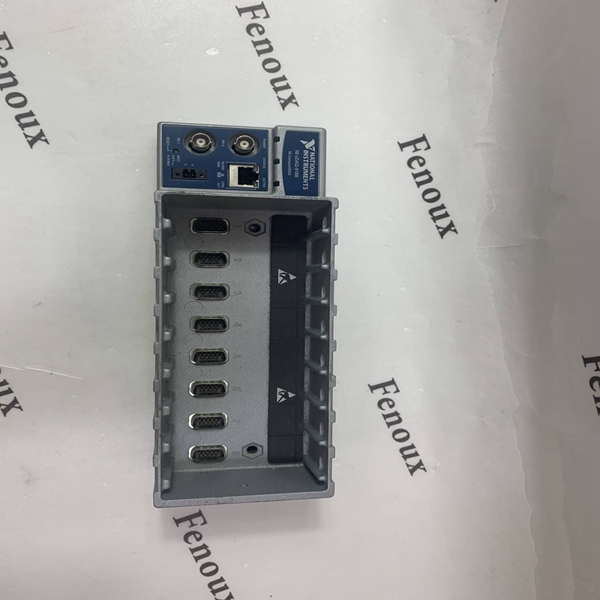

CDAQ-9188 NI Ethernet CompactDAQ Chassis

Brand： National Instruments

Model number：CDAQ-9188

Colour：new

Warranty: 12 months

Lead Time：3-day working day

Country of origin: USA Price: Please contact us

Product weight：0.920kg

Shipping Port: China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

CDAQ-9188 NI Controller module Brand new

Measurement Category I is for measurements performed on circuits not directly connected to

the electrical distribution system referred to as MAINS voltage. MAINS is a hazardous live

electrical supply system that powers equipment. This category is for measurements of voltages

from specially protected secondary circuits. Such voltage measurements include signal levels,

special equipment, limited-energy parts of equipment, circuits powered by regulated

low-voltage sources, and electronics.

Caution Do not connect the system to signals or use for measurements within

Measurement Categories II, III, or IV.

Note Measurement Categories CAT I and CAT O (Other) are equivalent. These test

and measurement circuits are not intended for direct connection to the MAINs

building installations of Measurement Categories CAT II, CAT III, or CAT IV.

Environmental

Operating temperature (IEC 60068-2-1

and IEC 60068-2-2)

-20 °C to 55 °C7

Caution To maintain product performance and accuracy specifications when the

ambient temperature is between 45 and 55 °C, you must mount the chassis

horizontally to a metal panel or surface using the screw holes or the panel mount kit.

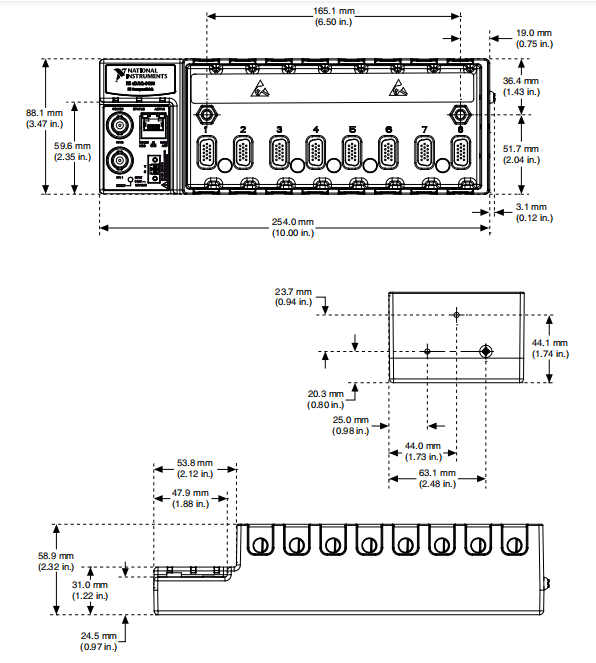

Measure the ambient temperature at each side of the CompactDAQ system 63.5 mm

(2.5 in.) from the side and 25.4 mm (1.0 in.) from the rear cover of the system. For

further information about mounting configurations, go to ni.com/info and enter

the Info Code cdaqmounting.

Storage temperature (IEC 60068-2-1 and

IEC 60068-2-2)

-40 °C to 85 °C

Ingress protection IP 30

Operating humidity (IEC 60068-2-56) 10% to 90% RH, noncondensing

Storage humidity (IEC 60068-2-56) 5% to 95% RH, noncondensing

Pollution Degree (IEC 60664) 2

Maximum altitude 5,000 m

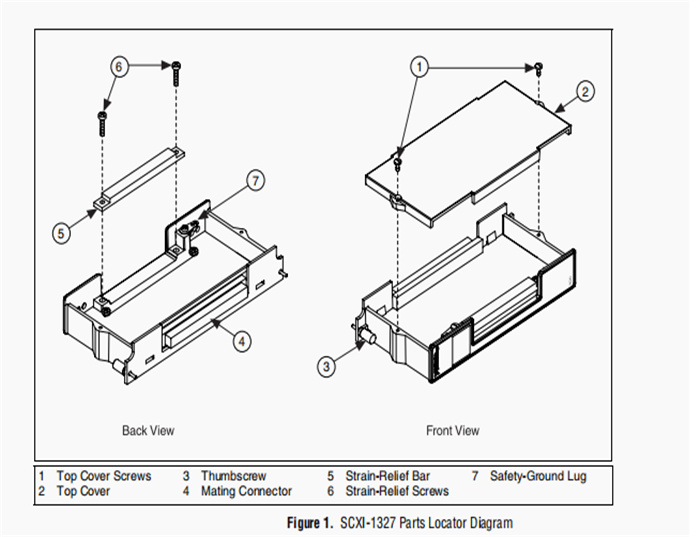

SCXI-1327 National Instruments Analog input module
