PXIE-4310 National Instruments

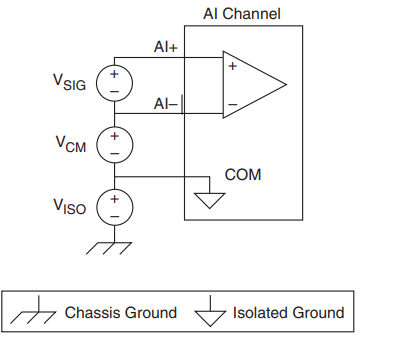

This chapter describes how to connect AI input signals to the PXIe-4310. It also provides the I/O

connector signal pin assignments of the module.

Driver support for the PXIe-4310 was first available in NI-DAQmx 17.1. For the list of devices

supported by a specific release, refer to the NI-DAQmx Readme, available on the

version-specific download page or installation media.

Caution To ensure the specified EMC performance, operate this product only with

shielded cables and shielded accessories. Use only twisted, shielded pair cables

(Belden 83319 or equivalent) for channel connections.

Caution When this symbol is marked on a product. This icon denotes a caution,

which advises you of precautions to take to avoid injury, data loss, or a system crash.

The PXIe-4310 provides channel-to-channel and channel-to-earth isolation. Refer to the

PXIe-4310 Specifications for information about Safety Voltage operating levels.

The NI PXIe-4310 provides eight, simultaneously sampled, analog input channels, each with

channel-to-channel and channel-to-earth isolation. The PXIe-4310 has a 10 V maximum

measurement range when using a TB-4310 (10V) that can be expanded to 600 V when using a

TB-4310 (600V). Each channel of the PXIe-4310 has a 16-bit ADC with three programmable

filter settings and four gain settings. Two input PFI lines are available on the module for

triggering/clocking.
