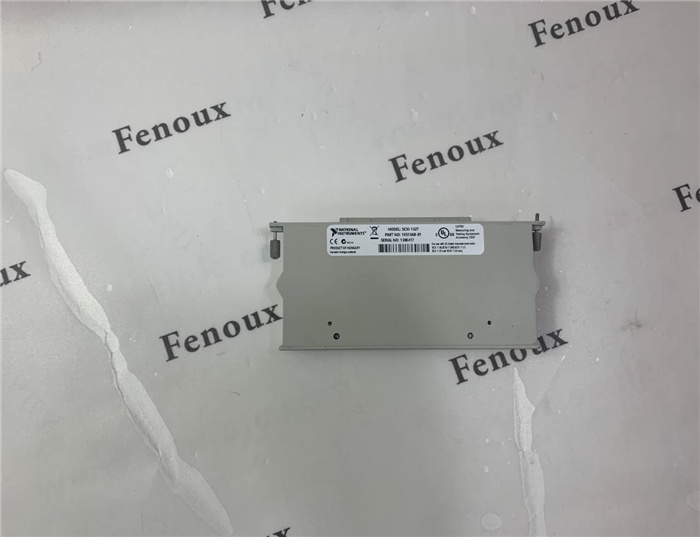

SCXI-1327 National Instruments Analog input module

INQUIRE NOW

Products Name: SCXI-1327 National Instruments Analog input module

PRODUCT DESCRIPTION

Brand:  National Instruments

Model number:SCXI-1327

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.24kg

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Description:

The SCXI-1327 high-voltage attenuator terminal block is shielded and has

screw terminals that connect to the SCXI-1120, SCXI-1120D, SCXI-1121,

SCXI-1125, or SCXI-1126 input connector. Each SCXI-1327 channel has

a precision 100:1 resistive voltage divider that you can use to measure

voltages of up to 300 Vrms or ±300 VDC with the SCXI-1120,

SCXI-1120D, SCXI-1121, SCXI-1125, or SCXI-1126. You can

individually bypass these dividers for low-voltage measurement

applications.

The terminal block has 18 screw terminals for easy signal connection.

One pair of screw terminals connects to the SCXI-1120, SCXI-1120D,

SCXI-1121, SCXI-1125, or SCXI-1126 chassis ground. When used with

the SCXI-1120, SCXI-1120D, SCXI-1125, or SCXI-1126, the remaining

eight pairs of screw terminals connect signals to the eight module inputs.

When used with the SCXI-1121, four pairs of SCXI-1327 screw terminals

connect signals to four module inputs and the remaining four pairs of

SCXI-1327 screw terminals connect signals to four module excitation

outputs.

The following conventions are used in this guide:

» The » symbol leads you through nested menu items and dialog box options

to a final action. The sequence File»Page Setup»Options directs you to

pull down the File menu, select the Page Setup item, and select Options

from the last dialog box.

This icon denotes a note, which alerts you to important information.

This icon denotes a caution, which advises you of precautions to take to

avoid injury, data loss, or a system crash.

bold Bold text denotes items that you must select or click on in the software,

such as menu items and dialog box options.

italic Italic text denotes variables, emphasis, a cross reference, or an introduction

to a key concept. This font also denotes text that is a placeholder for a word

or value that you must supply.

monospace Text in this font denotes text or characters that you should enter from the

keyboard, sections of code, programming examples, and syntax examples.

This font is also used for the proper names of disk drives, paths, directories,

programs, subprograms, subroutines, device names, functions, operations,

variables, filenames and extensions, and code excerpts.

SCXI-1327  National Instruments Analog input module

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
