Brand： National Instruments
Model number： usb-6351
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.42kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:
Datasheet
■ 5 V/TTL, sinking/sourcing digital I/O
■ Bidirectional, configurable by line with
shift-on-the-fly capability
■ 60 VDC, CAT I isolation
■ Industry-standard 37-pin DSUB
connector
■ -40 °C to 70 °C operating, 5 g vibration, 50
g shock
The NI-9403 is a 32-channel, 7 μs bidirectional digital I/O module for any NI
CompactDAQ or CompactRIO chassis. You can configure the direction of each digital
line on the NI-9403 for input or output. Each channel is compatible with 5 V/TTL
signals and features 60 VDC, CAT I isolation. The NI-9403 also features ±30 V
overvoltage protection and can source up to 2 mA output current per channel.
In an NI CompactDAQ chassis, you can use the NI-9403 as only a static (softwaretimed) digital I/O module. Due to the serial transfer of data, you cannot use these
modules to route timing or triggering signals. With the NI-9403 in a CompactRIO
chassis, you can use LabVIEW FPGA to program the NI-9403 for implementing
custom counter/timers, pulse generation, and much more.

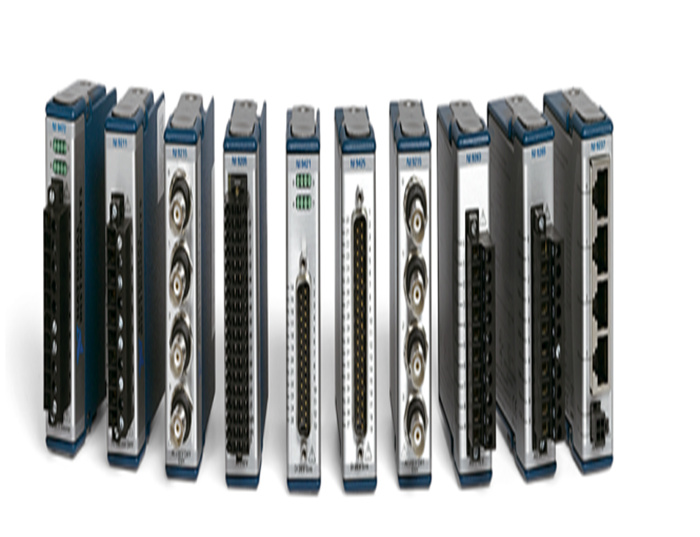

NI provides more than 100 C Series modules for measurement, control, and
communication applications. C Series modules can connect to any sensor or bus
and allow for high-accuracy measurements that meet the demands of advanced
data acquisition and control applications.
■ Measurement-specific signal conditioning that connects to an array of
sensors and signals
4 ni.com
NI-9403 Specifications
■ Isolation options such as bank-to-bank, channel-to-channel, and
channel-to-earth ground
■ -40 °C to 70 °C temperature range to meet a variety of application and
environmental needs
■ Hot-swappable
The majority of C Series modules are supported in both CompactRIO and
CompactDAQ platforms and you can move modules from one platform to the other
with no modification.

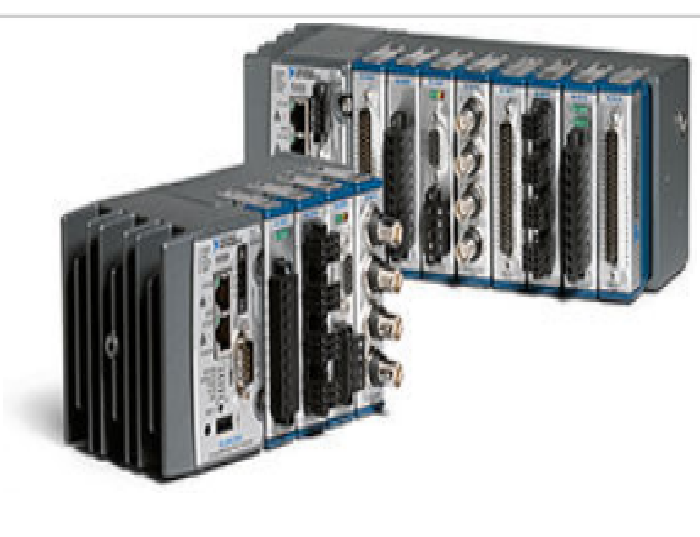

CompactRIO
CompactRIO combines an open-embedded
architecture with small size, extreme
ruggedness, and C Series modules in a
platform powered by the NI LabVIEW
reconfigurable I/O (RIO) architecture. Each
system contains an FPGA for custom timing,
triggering, and processing with a wide
array of available modular I/O to meet any
embedded application requirement.
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
