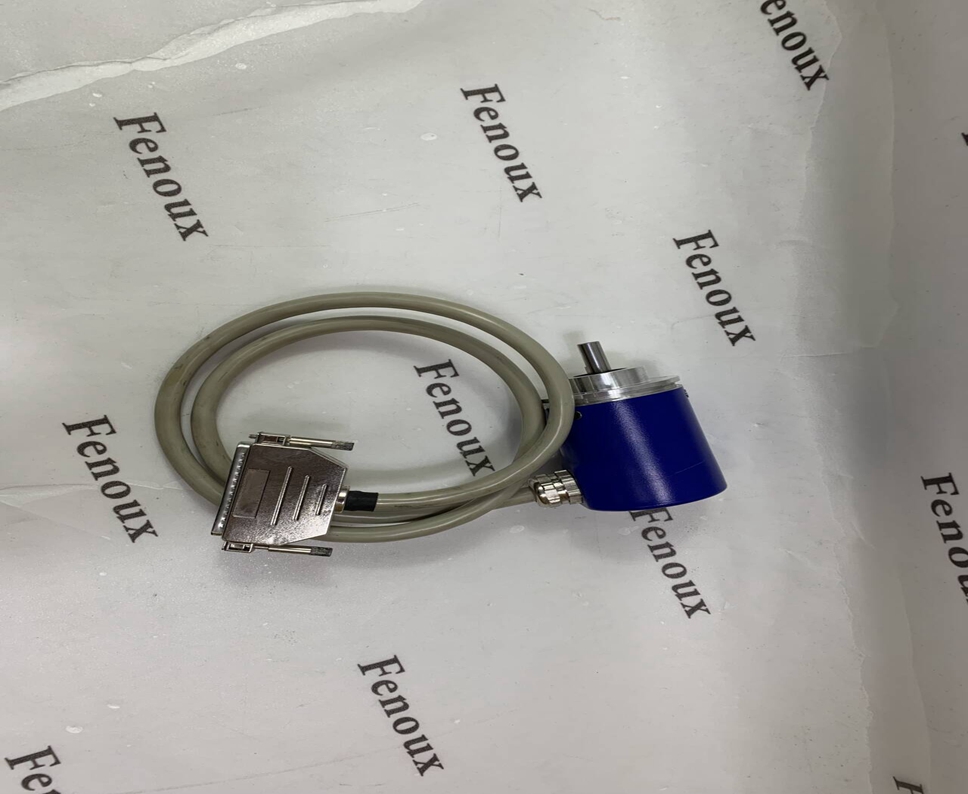

■ Encoder multiturn / bus cover
■ Optical sensing method
■ Resolution: singleturn 13 bit, multiturn 16 bit
■ Clamping or synchro flange
■ Interface: Profibus-DP
■ Code continuity check optional by bus
■ Maximum resistant against magnetic fields
Technical data - electrical ratings
Voltage supply 10...30 VDC
Reverse polarity protection Yes
Consumption w/o load ≤100 mA (24 VDC)
Initializing time typ. 250 ms after power on
Interface Profibus
Function Multiturn
Device adress Rotary switch in bus cover (type-specific)
Steps per revolution ≤8192 / 13 bit
Number of revolutions ≤65536 / 16 bit
Absolute accuracy ±0,025 °
Sensing method Optical
Code Binary
Code sequence CW/CCW programmable
Incremental output 2048 pulses A90°B (optional)
Interference immunity EN 61000-6-2
Emitted interference EN 61000-6-4
Programmable parameters Steps per revolution
Number of revolutions
Preset
Scaling
Rotating direction
Diagnostic function Position or parameter error
Multiturn sensing
Status indicator DUO-LED integrated in bus cover
Approval UL approval / E63076

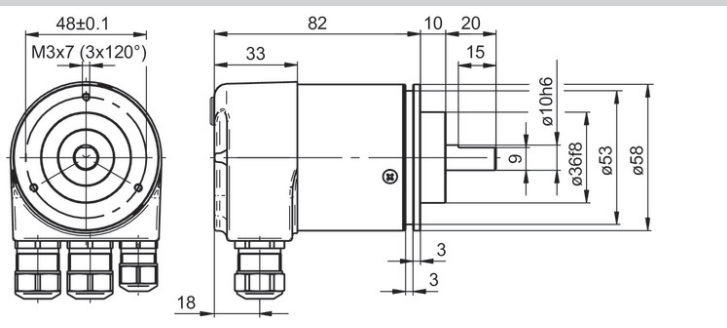

Technical data - mechanical design
Size (flange) ø58 mm
Shaft type ø10 mm solid shaft (clamping flange)
ø6 mm solid shaft (synchro flange)
Flange Clamping or synchro flange
Protection EN 60529 IP 54 (without shaft seal)
IP 65 (with shaft seal)
Operating speed ≤10000 rpm (mechanical)
≤6000 rpm (electric)
Starting acceleration ≤1000 U/s²
Starting torque ≤0,015 Nm (+25 °C, IP 54)
≤0,03 Nm (+25 °C, IP 65)
Rotor moment of inertia 20 gcm²
Admitted shaft load ≤20 N axial
≤40 N radial
Material Housing: steel
Flange: aluminium
Bus cover: zinc die-cast
Operating temperature -25...+85 °C
-40...+85 °C (optional)
Relative humidity 95 % non-condensing
Resistance EN 60068-2-6
Vibration 10 g, 16-2000 Hz
EN 60068-2-27
Shock 200 g, 6 ms
Weight approx. 650 g
Connection Bus cover
