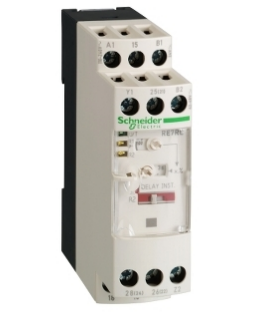

Range of Product Zelio Time
Product or Component
Type
Industrial timing relay
Component name RE7
Time delay type C
Time delay range 0.05 s...300 h
Discrete output type Relay
Contacts material 90/10 silver nickel contacts
Width pitch dimension 0.89 in (22.5 mm)
[Us] rated supply voltage 110...240 V AC 50/60 Hz
24 V AC/DC 50/60 Hz
42...48 V AC/DC 50/60 Hz
Voltage range 0.85...1.1 Us
Connections - terminals Screw terminals, 2 x 1.5 mm² flexible with cable end
Screw terminals, 2 x 2.5 mm² flexible without cable end
Tightening torque 5.31…9.74 lbf.in (0.6…1.1 N.m)
Setting accuracy of time delay +/- 10 % of full scale
Repeat accuracy +/- 0.2 %
Temperature Drift < 0.07 %/°C
Voltage drift < 0.2 %/V
Minimum pulse duration 20 ms
Reset time 50 ms
Maximum switching voltage 250 V AC/DC
Mechanical durability 20000000 cycles
[Ith] conventional free air thermal current 8 A
Maximum [Ie] rated operational current 2 A DC-13 24 V 158 °F (70 °C) IEC 60947-5-1/1991/VDE 0660
0.1 A DC-13 250 V 158 °F (70 °C) IEC 60947-5-1/1991/VDE 0660
0.2 A DC-13 115 V 158 °F (70 °C) IEC 60947-5-1/1991/VDE 0660
3 A AC-15 158 °F (70 °C) IEC 60947-5-1/1991/VDE 0660
Minimum switching capacity 10 mA 12 V
Input voltage < 60 V X1Z2
< 60 V Y1Z2
Maximum switching current 1 MA X1Z2)
1 mA Y1Z2)
Input compatibility 3/4 wires sensors PNP/NPN without internal load <164.04 ft (50 m) X1Z2
3/4 wires sensors PNP/NPN without internal load <164.04 ft (50 m) Y1Z2
Potentiometer characteristic Linear 47 kOhm +/- 20 %), 0.2 W 82.02 ft (25 m) Z1Z2
Marking CE
Overvoltage category III IEC 60664-1
[Ui] rated insulation voltage 250 V between contact circuit and control inputs IEC
250 V between contact circuit and power supply IEC
300 V between contact circuit and control inputs CSA
300 V between contact circuit and power supply CSA
Shipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
