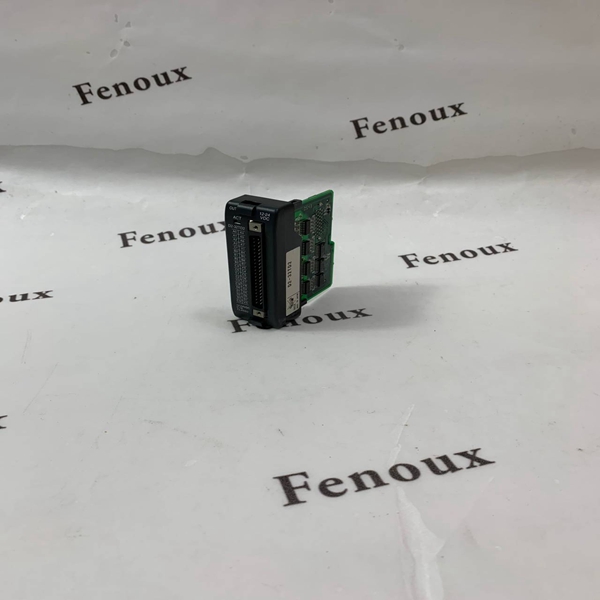

AUTOMATION DIRECT D2-32TD2

The example on the right shows how

to calculate the power budget for the

Do-more PLC system. The examples

are constructed around a single 9-slot

base using the devices shown. It is

recommended you construct a similar

table for your Do-more PLC system.

Follow the steps to the right to determine

your power budget.

Solution 1: Do-more, DirectLOGIC, CLICK

and Productivity Series I/O Modules to

ZIPLink Connector Modules

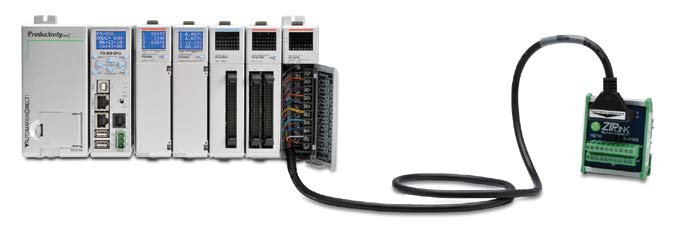

When looking for quick and easy I/O-to-ffeld termination, a

ZIPLink connector module used in conjunction with a prewired

ZIPLink

cable, consisting of an I/O terminal block at one end and a multipin

connector at the other end, is the best solution.

Using the PLC I/O Modules to ZIPLink Connector

Modules selector tables located in this section,

1. Locate your I/O module/PLC

2. Select a ZIPLink Module

3. Select a corresponding ZIPLink Cable.

Solution 2: Do-more, DirectLOGIC, CLICK

and Productivity Series I/O Modules to

3rd Party Devices

When wanting to connect I/O to another device within proximity

of the I/O modules, no extra terminal blocks are necessary when

using the ZIPLink Pigtail Cables. ZIPLink Pigtail Cables are

prewired to an I/O terminal block with color-coded pigtail with

soldered-tip wires on the other end.

Using the I/O Modules to 3rd Party Devices selector

tables located in this section,

1. Locate your PLC I/O module

2. Select a ZIPLink Pigtail Cable that is compatible

with your 3rd party device.
