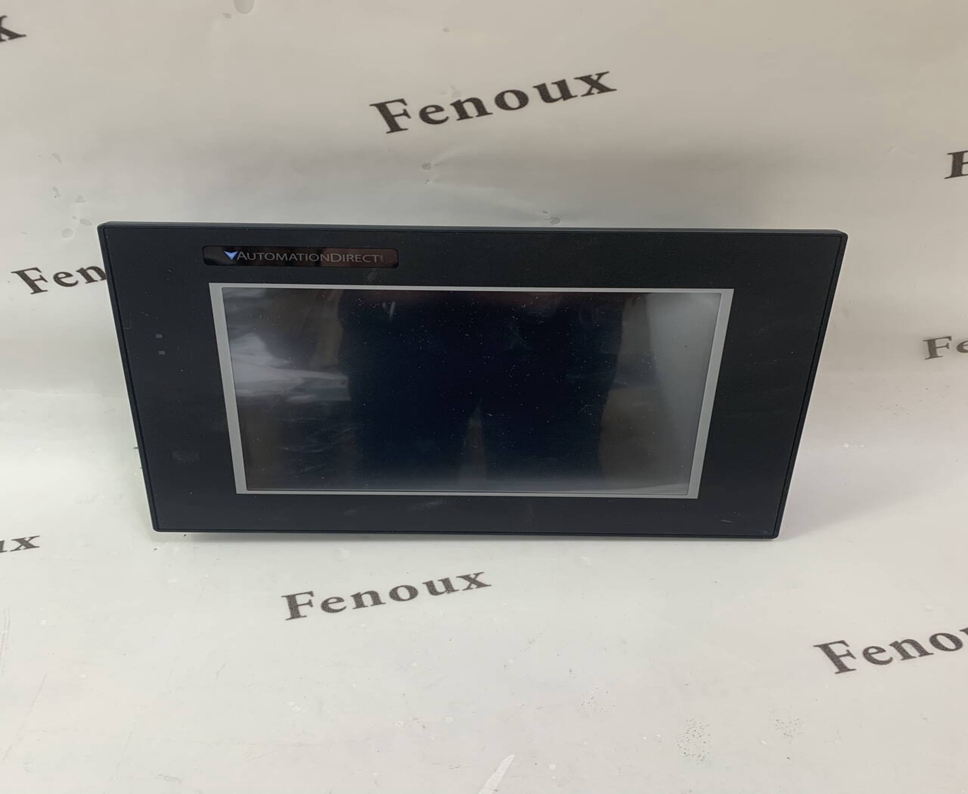

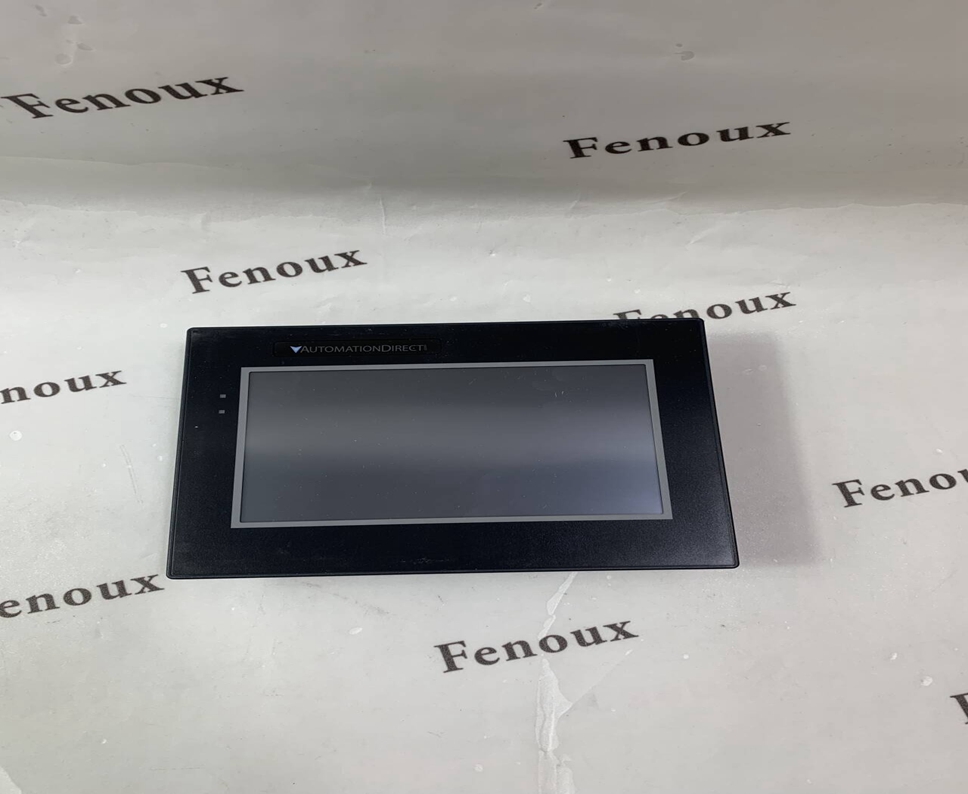

AUTOMATION DIRECT EA9-T8CL

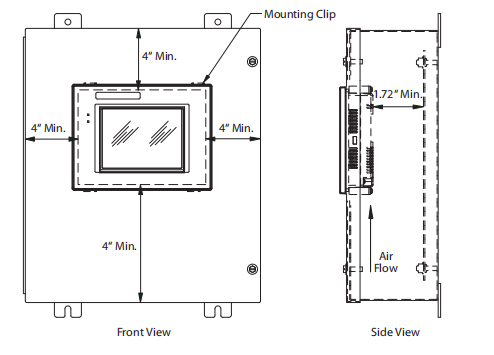

The C-more 6” and 7” touch panels are mounted into a cutout through the control cabinet

and secured with four (4) mounting clips. The mounting clips are provided with the touch

panel. The mounting clips will insert into a series of slots around the rear perimeter of the

touch panel. Each clip has a tab that will mate to a slot. The screw of each mounting clip

needs to be tightened to the torque rating shown in the table below so that the gasket is

compressed to form the proper seal between the panel and cabinet surface.

Providing Power to the Touch Panel • Connect a dedicated 12-24 VDC Class 2 power supply to the DC connector on the rear of the

C-more touch panel, include wiring the ground terminal to a proper equipment ground

• or install a C-more AC/DC Power Adapter, EA-AC, to the rear of the touch panel and connect an

AC voltage source of 100-240 VAC, 50/60Hertz, to its AC connector (see note below)

• then turn on the power source and check the LED status indicators on the front and rear of the

C-more touch panel for proper indication (see next page)

NOTE: A dedicated power supply is recommended. If the power supply also feeds inductive loads such as

solenoids or relays, the transients caused by these loads can affect the operation of the panel or damage panel

components.

NOTE: The AC/DC Power Adapter, EA-AC, is for C-more touch panels only. The adapter is powered from a 100-

240 VAC, 50/60 Hertz power source. The adapter provides 24 VDC @ 1.5 A. Power Fault features help protect data

on an SD memory card during power failures.
