Bristol Babcock 396604-01-3

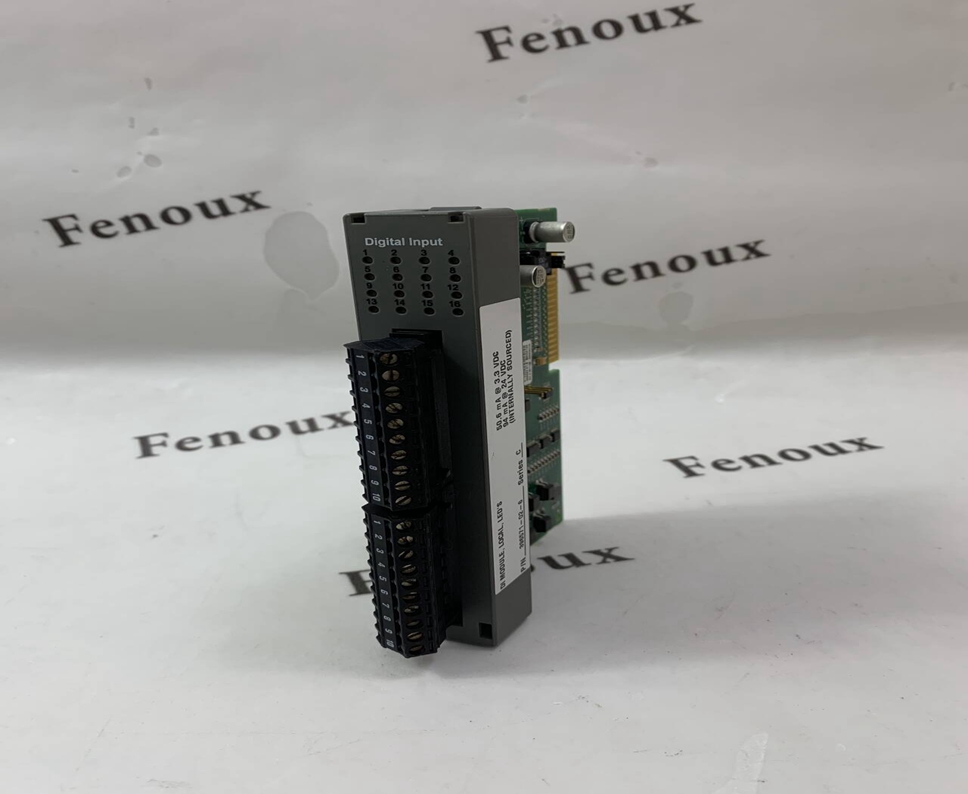

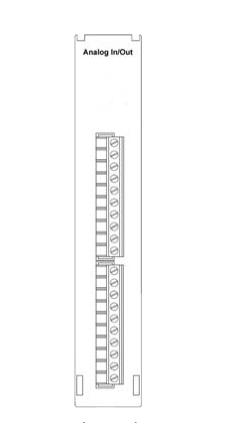

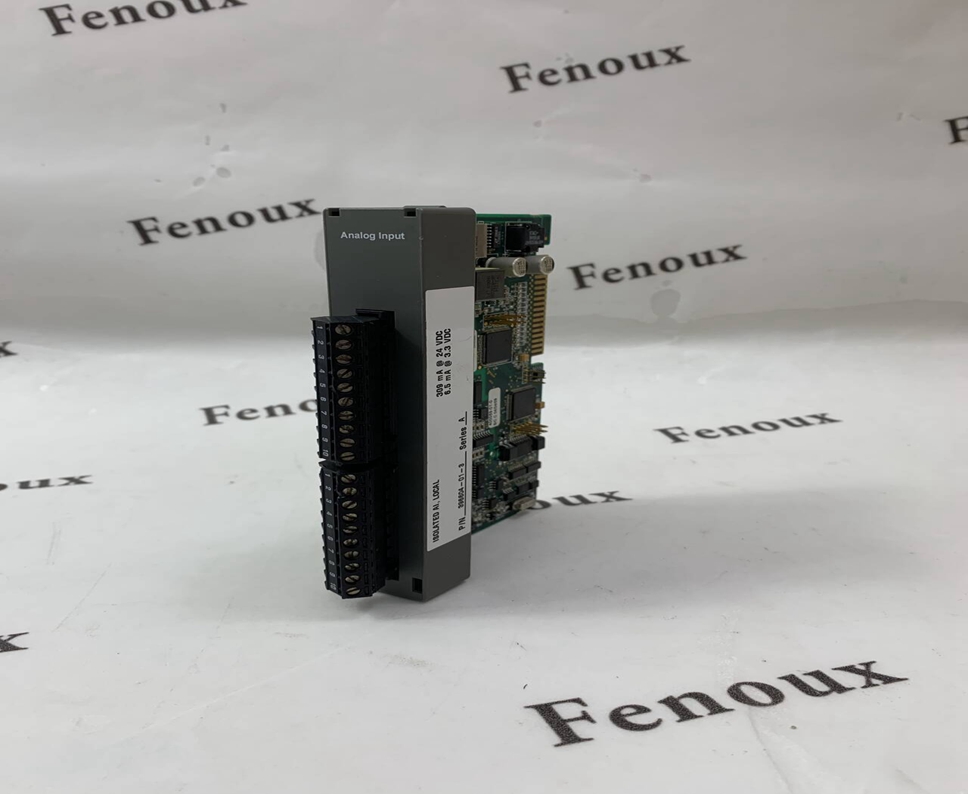

The Analog Input (AI), Analog Output (AO), and Analog

Input/Output (AI/O) modules provide the ControlWave®

Micro with the ability to monitor and control various analog

field signals. The following AI, AO, and AI/O modules are

available.

 6 Analog Inputs and 2 Analog Outputs module

 6 Analog Inputs module

 8 Isolated Analog Inputs module

 4 Isolated Analog Outputs module

All I/O modules have surge protection that meets C37.90-

1978 and IEC 801-5 specifications.

All analog I/O modules are available factory configured for

either local terminations that consist of two 10-point

terminal block assemblies or remote terminations that

consist of two 14-pin mass termination headers.

Terminations are pluggable and accept a maximum wire

size of 14 AWG (American Wire Gauge).

Remote terminations provide a convenient alternative to

the standard direct connect termination. Remote

terminations allow a concentration of electrical connections

from one or more controllers to be located in a single area,

such as the rear of a 19-inch cabinet. For more information

on remote terminations, refer to Product Date Sheet

CWMICRO.

The 4 Isolated Analog Outputs module provides four analog

outputs that can be individually jumper configured for 4 to

20 mA or 1 to 5 Vdc isolated operation. Analog outputs are

electrically isolated from the CPU power system. Calibration

data for each channel is stored in an onboard EEPROM for

both current and voltage mode configurations. The 4

Isolated Analog Outputs module is available with local or

remote terminations.
