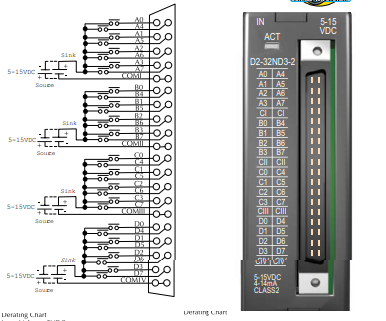

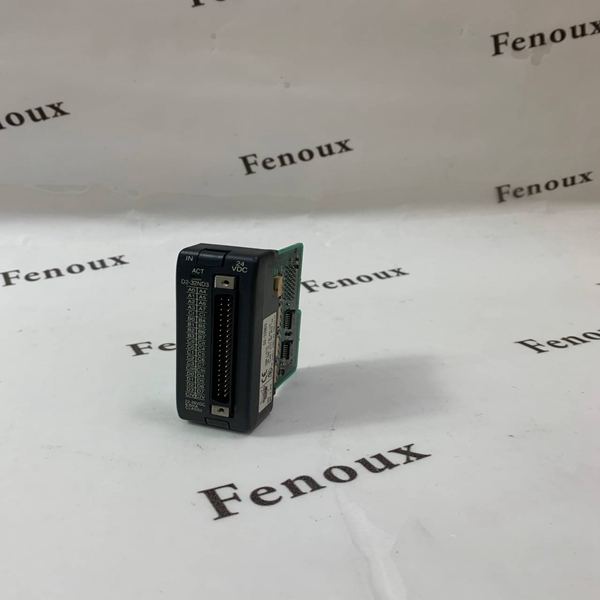

D2-32ND3 AUTOMATION DIRECT

See Wiring Solutions for part numbers of

ZIPLink cables and connection modules

compatible with this I/O module.

These charts help

determine your power

requirements

This section shows the amount of power

supplied by each of the base power

supplies and the amount of power

consumed by each DL205 device. The

Power Consumed charts list how much

INTERNAL power from each power

source is required for the DL205 devices.

Use this information when calculating the

power budget for your system.

In addition to the internal power sources,

the DL205 bases offer a 24 VDC auxiliary

power supply with external power

connections. This auxiliary power supply

can power external devices.

Use ZIPLinks to reduce

power requirements

If your application requires a lot of relay

outputs, consider using the ZIPLink

AC or DC relay output modules. These

modules can switch high current (10A)

loads without putting a load on your

base power budget. Refer to the Terminal

Blocks and Wiring Solutions section in

this catalog for more information.

This logo is placed next to the I/O

modules that are supported by the

ZIPLink connection systems. See the I/O

module speciffcations at the end of this

section.
