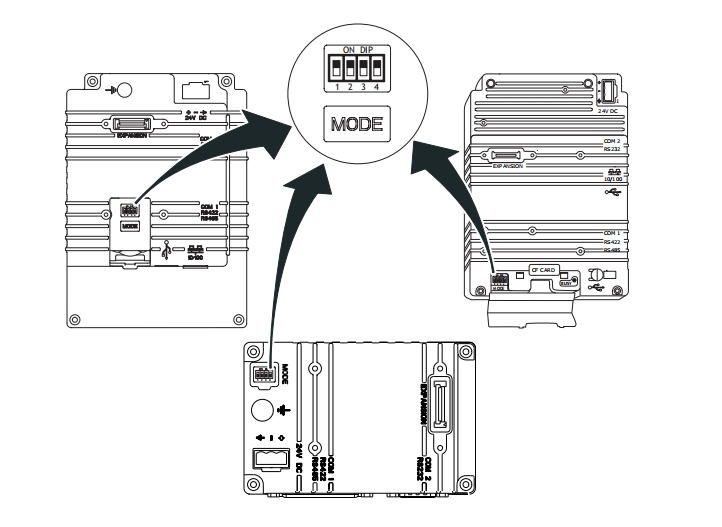

MODE Description for EXTER K10m and EXTER K20m
0000 “Run-mode” - Normal operation.
0010 System Restore, resets the file system. Restores the operator panel to factory
settings.
Warning! Information can easily accidently be lost.
0100 Image Load mode (Sysload) allows upgrading of the firmware in the operator
panel.
1000 Service Menu mode, the service menu for the system program is shown.
Allows the user to set IP configuration, erase the project etc.
See section Service Menu for details.
1110 Self-Test.
1 2 3 4
ON DIP
1
24V DC
CF CARD
COM 1
RS422
RS485
COM 2
RS232
10/100
EXPANSION
BUSY
MODE
1 2 3 4
ON DIP
1 2 3 4
ON DIP
1 2 3 4
ON DIP
Hardware
Beijer Electronics, MAEN757C 25
To change mode switches, follow the steps below:
1. Disconnect power from the operator panel.
2. Set the mode switches using a ballpoint pen.
3. Reconnect power to the operator panel.
3.6.2 Cables
Most of the operator panels use the same type of flex cable connectors.
Flex cable connector
To release the flex cables from the connector, gently push the two flanges on the cable
connector towards the flex cable.
MODE
Description for EXTER K30m, EXTER K60/K60c/K60m, EXTER K70,
EXTER K100, EXTER T40/T40m and EXTER T60/T60c/T60m, EXTER T70,
EXTER T100 and EXTER T150
0000 “Run-mode” - Boot CE, normal operation.
0010 System Restore, resets the file system and registry, reinstalls the system program (OPsys_bxxx.CAB). Restores the operator panel to factory settings.
Warning! Information can easily accidently be lost.
0100 Image Load mode (Sysload) allows upgrading of the firmware in the operator
panel.
Note: All files including the file system in the operator panel will be deleted
when upgrading with Image Loader.
1000 Service Menu mode, the service menu for the system program is shown.
Allows the user to set IP configuration, erase the project, calibrate the touch
screen, set the panel in Run/Transfer mode etc.
See section Service Menu for details.
1100 Not used (Run-mode).
1110 Self-Test.
xxx1 Hard reset (forces the system to reset).
