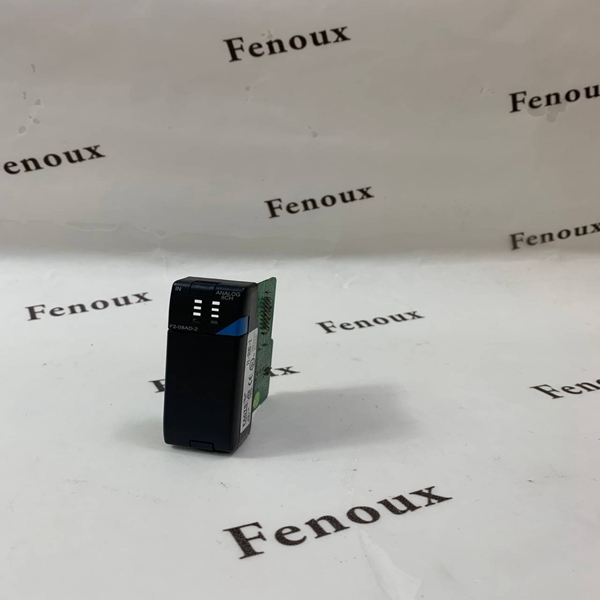

F2-08AD-2 AUTOMATION DIRECT

Maximum Continuous Overload --75 VDC to +75 VDC

Linearity Error (End to End) ±0.025% of span (1 count maximum unipolar)

(  2 count maximum bipolar)

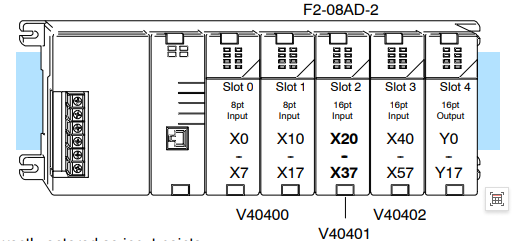

The F2-08AD-2 Analog Voltage Input

module provides several hardware

features:

S Analog inputs are optically isolated

from the PLC logic.

S The module has a removable

terminal block so the module can

be easily removed or changed

without disconnecting the wiring.

S With a DL240, DL250--1 or DL260

CPU, you can update all channels

in one scan.

S Low-power CMOS design requires

less than 80mA from an external

18--26.4 VDC power supply.

Firmware Requirements:

To use this module, D2--230 CPUs must

have firmware version 1.6 orlater. To use

the pointer method of writing values,

D2--240 CPUs require firmware version

2.2 or later and D2--250 CPUs require

firmware version 1.06 or later.

The following tables provide the specifications for the F2-08AD-2 Analog Input

Module. Review these specifications to make sure the module meets your

application requirements.

Number of Channels 8, single ended (one common)

Input Ranges 0 - 5V, 0 - 10V,  5V.,  10V.

Resolution 12 bit (1 in 4096) unipolar (0 -- 4095)

13 bit (1 in 8192) bipolar (--4095 -- +4095)

Step Response 4 mS to 95% of full step change

Crosstalk --70 dB, 1 count maximum

Input Filtering f--3dB @ 200Hz, -6 dB / octave

Input Impedance > 20MΩ
