H2-WPLC1 AUTOMATION DIRECT

Support of the following features depends on your PC-based Control software

implementation:

• the frequency of I/O updates

• the available support for RS232C serial communications

• the uses of the DIP switches

• the uses of the LEDs

If you are using the Visual Basic for CE or Visual C for CE version of the WinPLC, you will

receive an SDK (software development kit), a utility called WinPLC Workbench, and a

Viewer. The SDK will provide functions to access the features above, WinPLC

Workbench will give you a means to set up the WinPLC, and the Viewer will make it

possible to load your Visual Basic for CE or Visual C for CE programming the WinPLC.

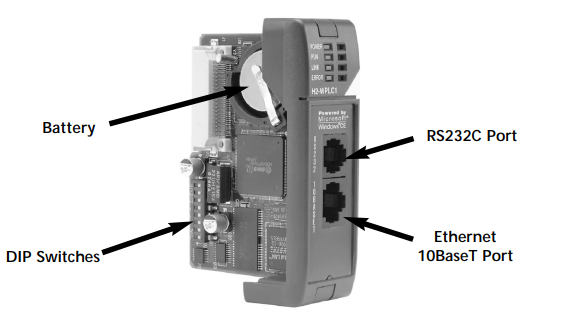

The WinPLC (part number H2-WPLC1-xx) is an open-platform CPU running the

Windows→ CE operating system. It plugs into the CPU-slot of a DirectLOGIC DL205

base and “talks” across the backplane to standard digital and analog input and output

modules.

The Windows→ CE operating system is a familiar favorite for embedded systems in a

wide variety of applications. Using Windows→ CE in the WinPLC makes it a flexible

control platform with the ability to run PC-based Control software from a number of

sources, as well as Visual Basic and Visual C programs.

The operating system is resident in the module and does not require battery back-up.

The user program is backed by a five-year lithium battery.

The WinPLC’s operating characteristics will largely be determined by the PC-based

Control software running in it. The PC-based Control software provider chooses how to

use the available features in their implementation of the product.

Features Depend on Software Implementation
