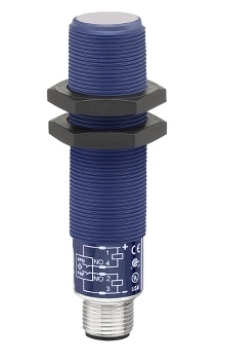

Hyde Park SC656A-BV0

WARNING: This product can expose you to chemicals including: Diisononyl

phthalate (DINP), which is known to the State of California to cause cancer,

and Di-isodecyl phthalate (DIDP), which is known to the State of California

to cause birth defects or other reproductive harm. For more information go to

www.P65Warnings.ca.gov

Range of Product Hyde Park

Sensor Type Ultrasonic sensor

Series name Superprox +

Device short name SC656

Sensor design Cylindrical M18

Type of sensing window Configurable

Material Plastic

Enclosure Material ULTEM

Front material Silicone rubber

Type of output signal Analog

ISO thread M18 x 1

Wiring Technique 4-wire

[Us] rated supply

voltage

15...24 V DC overload and short-circuit protection

Supply voltage limits 13…28 V DC

Analogue output range 0...10 V configurable

Electrical connection Male connector M12 4 pins

Product Specific

Application

Analog output

[Sn] nominal sensing distance 10.00 in (254 mm)

Blind zone 0.75 in (19 mm)

Transmission frequency 500 kHz

Beam angle 10 °

Minimum size of detected object Cylinder diameter 1.59 mm - up to 76.2 mm sensing distance

Current Consumption 50 mA

Maximum switching current 100 mA reverse polarity protection

Height 0.71 in (18 mm)

Width 0.71 in (18 mm)

Depth 0.71 in (18 mm)

Length 2.91 in (73.91 mm)

Net Weight 0.07 lb(US) (0.033 kg)
