R2AA04005FCP00M SANYO DENKI

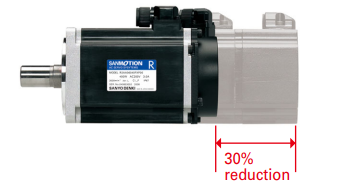

Motor size and volume is reduced by as much as 30%

and 25% respectively compared to our current models.

This provides high torque and high performance in a

small package.

Note 1) For the parts marked ,use a twisted pair shielded cable.

Note 2) Connect regenerative resistor between RB1 and RB2 terminals.

when using external regenerative resistor,connect it between

RB1 and RB2 terminals after removing the wiring of built-in

regenerative resistor.

Note 3) －○ terminal is for maintenance (high-voltage circuit). So, do not

wire this terminal.

Note 4) Motor connection differs to the motor specifications. The

indications of red, white, black, green and orange apply when the

motor power and brake lines are the lead type. when they are the

cannon plug type, connect them according to the motor

specification.

Note 5) For how to wire the encoder connector, refer to the encoder

wiring diagram.

Note 6) Please be sure to connect SG(signal ground) between equipment

with servo amplifier when you use a difference input signal.

Note 7) The R,S,T,r,t,－○,RB1,RB2,U,V,and W terminals are higi-voltage

circuits and the others are low-voltage circuits. For the

wiring-related reason, allow sufficient distance between high-and

low-voltage circuits.

Note 8) CN4 is a connector for safety function signals. To turn the servo

motor power ON, a safety device must be connected and the

wiring to activate the safety function must be done. When not

using the safety function, use the connector (P.N : AL-00718251-

01) of an option inserted into the CN4.

Note 9) Nothing should connect with CN4-1 and 2pin.

Note 10) It is recommend to use a ground fault interrupter conforming to

the UL,IEC and EN standards. Do not wire the S phase for a

single-phase power amplifier.

Note 11) Power should be supplies by the user.
