RONAN X12D83R

RONAN X12D83R PLC module

Brand:RONAN

Model number: X12D83R

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.25kg

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

RONAN X12D83R PLC module




INQUIRE NOW

Products Name: RONAN X12D83R

PRODUCT DESCRIPTION

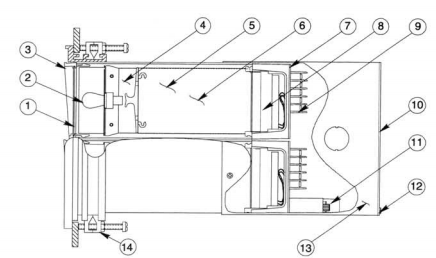

Cabinets - Window Series:

Standard cabinet finish is black baked semi-glossenamel.

Other finishes are available to meet customers'specifications.

Adjustable cabinet mounting clamps can be locatedanywhere around the assembled cabinet.Rear covers are complete with captive fasteners.

Chassis - Remote Series:Units can be mounted in any position.Standard chassis finish is grey baked semi-glossenamel.

RONAN X12D83R

The Ronan Series X12 Solid State AnnunciatorSystems are the most versatile window annunciatorson the market. The systems accept a wide variety ofinputs such as live or dry contacts, solid-stateswitches, analog signals such as Thermocouples.RTD's, millivolt or milliampere, externally sourced acor dc voltages or pulse signals. The inputs, conditionedthrough modules integral to the system, provide alarmstatus identification to be displayed on multi-sizedconventional windows.The superior mechanical con-struction and the quality of workmanship, combinedwith the most reliable electronic designs, haveestablished the X12 Series as the leader in the field onwindow annunciation.

These features are also available in the X16 SeriesRemote Logic configuration, suitable for splitarchitecture layouts. The X16 Series may interfacewith window lamp displays, graphics, or individuallamp assemblies without compromise to the flexibilityof the input and output features.

Electrical Ratings:

Operating Voltage: 24 Vdc 25%Operating Current for Normal Condition:Sequence AS: 6 mA per point.Sequence FD, RD: 15 mA per point.Al/ Others: 9 mA per point.Field Contact Current: 6 mA.Field Contact Voltage: 24 Vdc.Horn Relay Driver Capacity: 1.5 W at 30 V.Series X16 Lamp Driver Capacity: 6 W at 30 V.Response Time:10 milliseconds nominal.Field Wiring Series Resistance: 1000 ohms max.First Alert Grouping Capacity: 150 points max.Flasher Capacity: 150 points
