WAGO 767-5801

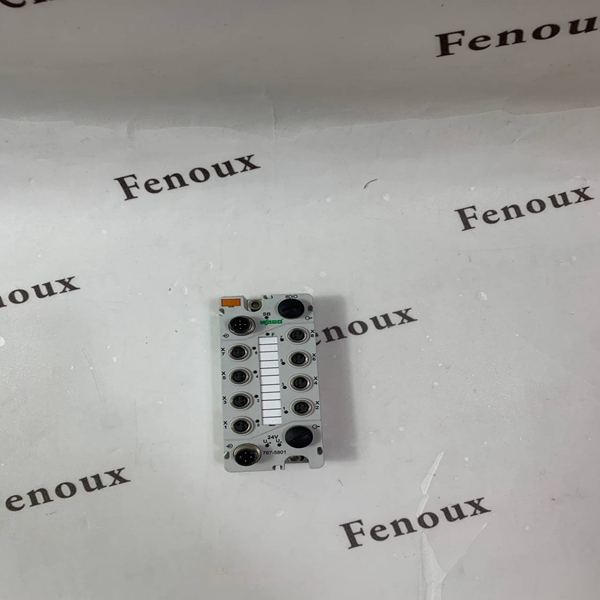

WAGO 767-5801  8-Channel Digital Input / Output Module

Brand:WAGO

Model number:767-5801

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.81kg

Shipping Port: China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

WAGO 767-5801  8-Channel Digital Input / Output Module


INQUIRE NOW

Products Name: WAGO 767-5801

PRODUCT DESCRIPTION

• 8 digital inputs/outputs, 24 VDC / 0.5 A

• Input/output, parametrizable (channel by channel)

• Diagnostic-capable (channel by channel/module by module)

• Parametrizable (operating mode, incl. counter, filter, inversion,

substitute value strategy, substitute value, manual mode, online simulation

and diagnostics)

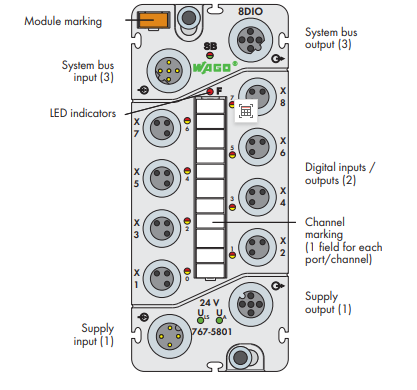

WAGO 767-5801

Description:

Digital outputs:

Output voltage ≤ UA

Output current (per channel) 0.5 A (max. 0.6 A),

short-circuit/overload proof

(thermal disconnection)

Voltage drop against UA at 500 mA max. 0.2 V DC

Output current (module) max. 4 A

Leakage current in OFF state typ. 5 μA

Output circuit High-side switching

Information on actuator selection:

Delay time hardware from "0" to "1"

(0 – 90%) typ. 90 μs (resistive load)

Delay time hardware from "1" to "0"

(0 – 90%) typ. 310 μs (resistive load)

Rise time from "0" to "1" typ. 60 μs (resistive load)

Fall time from "1" to "0" typ. 45 μs (resistive load)

Cable length, unshielded ≤ 30 m

Reverse current (in case of recovery for

voltages > UA) ≤ 0,5 A (error: 1 channel)

Type of load Inductive, resistive loads and lamps

Switching frequency Inductive load approx. 20 Hz

Resistive load approx. 500 Hz

Lamp load approx. 500 Hz

Parallel connection of 2 outputs for power boost

for redundant actuation of a load

Type of protective circuit External protection (e.g., recovery diodes)

Output resistance < 0.4 Ω

Operating state influence on output:

PLC CPU stop Acc. to substitute value strategy

Fieldbus disruption Acc. to substitute value strategy

S-bus (system bus) disruption 0 V status

Supply voltage under rated voltage

tolerance 0 V status

Interruption of supply voltage 0 V status

Output operation Non-latching

Overload behavior Automatic restart

Counters:

No. of counters 2

Counter type Event/Gate time counter, pulse duration

Counting/switching frequency 0 Hz ... 1 kHz
