1. GTO-thyristors ( press-pack type)
2. Transistor modules
3. Thyristors (press-pack and module type)
4. Rectifier diodes (press-pack and module type)
5. Free-wheeling diodes ( stud and press-pack type)
6. Snubber diodes ( stud type)
7. Chopper diodes ( stud and press-pack type)
The replacement table gives a list of those semiconductors, which can be used in SAMI STAR frequency converters.
The types given for each semiconductor are interchangeable. Detail information about the mounting of the power
semiconductor is given in the semiconductor assembly instructions (code 57192593).
Table
1. GTO-thyristors ( press-pack type)
2. Transistor modules
3. Thyristors (press-pack and module type)
4. Rectifier diodes (press-pack and module type)
5. Free-wheeling diodes ( stud and press-pack type)
6. Snubber diodes ( stud type)
7. Chopper diodes ( stud and press-pack type)

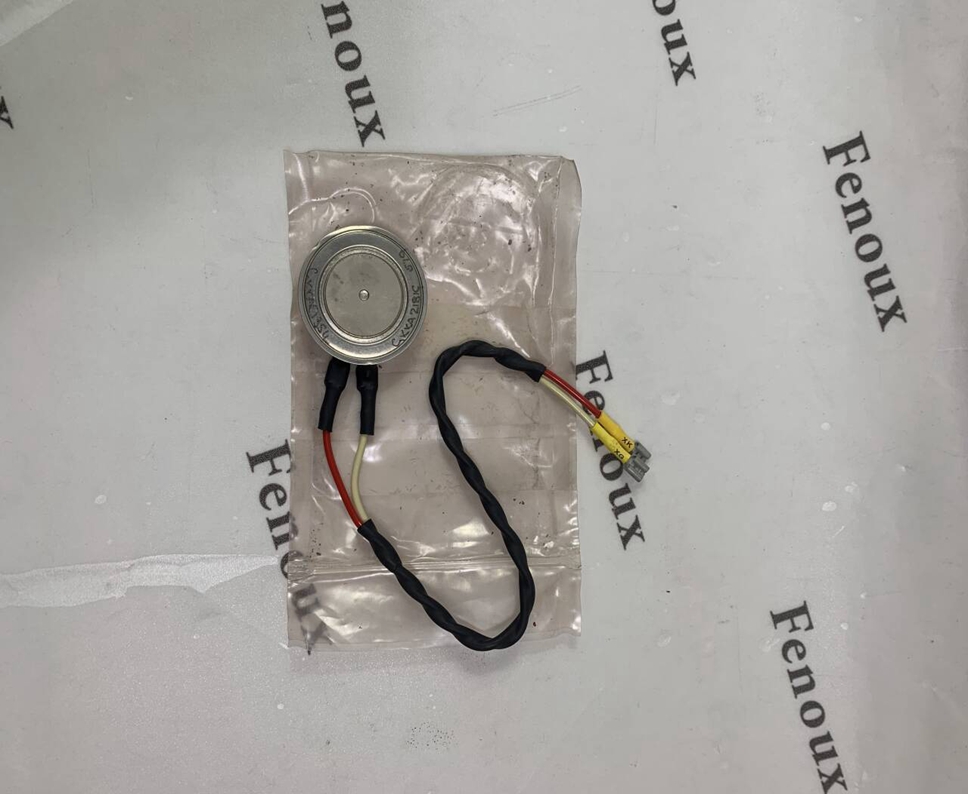

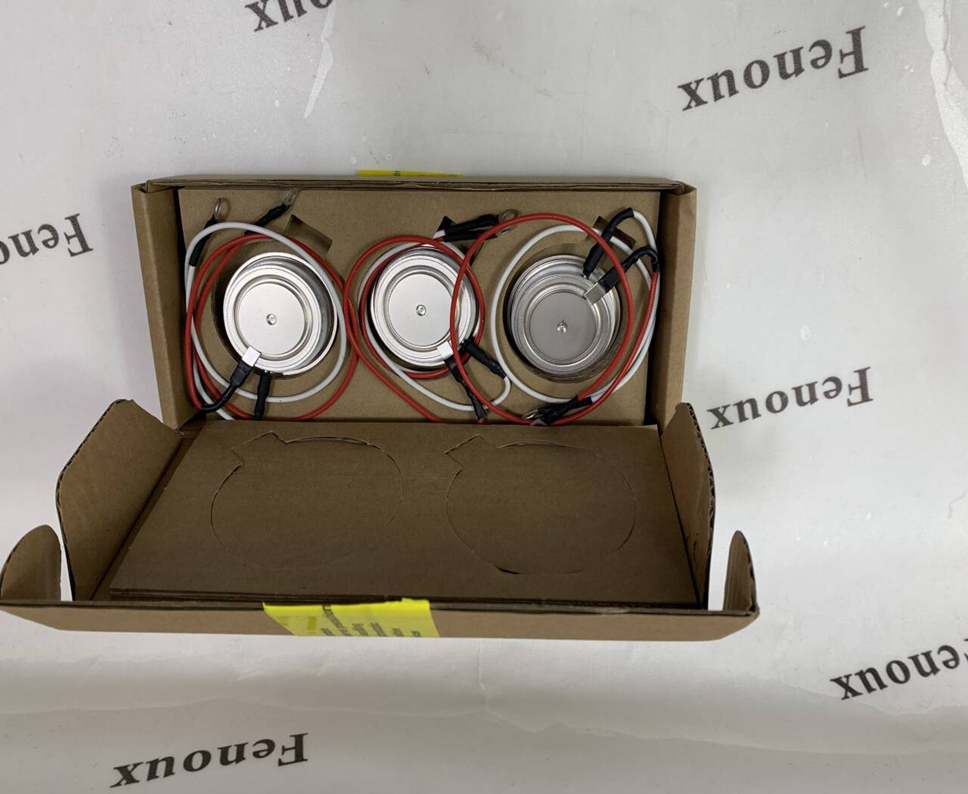

1. REPLACEMENT TABLE FOR GTO-THYRISTORS
On the following table are listed the GTO's, which are approved for SAMI STAR. Mechanically these GTO's are of
press-pack type. Because of different dimensions of the GTO's there are available installation set for each
specification, if it is necessary. The installation set including instructions are delivered with spare GTO's.
LEGEND:
ITGQ Controllable turn-off current
VDRM Peak off-state voltage
F Clamping force in kN
d * h GTO diameter * height in mm
