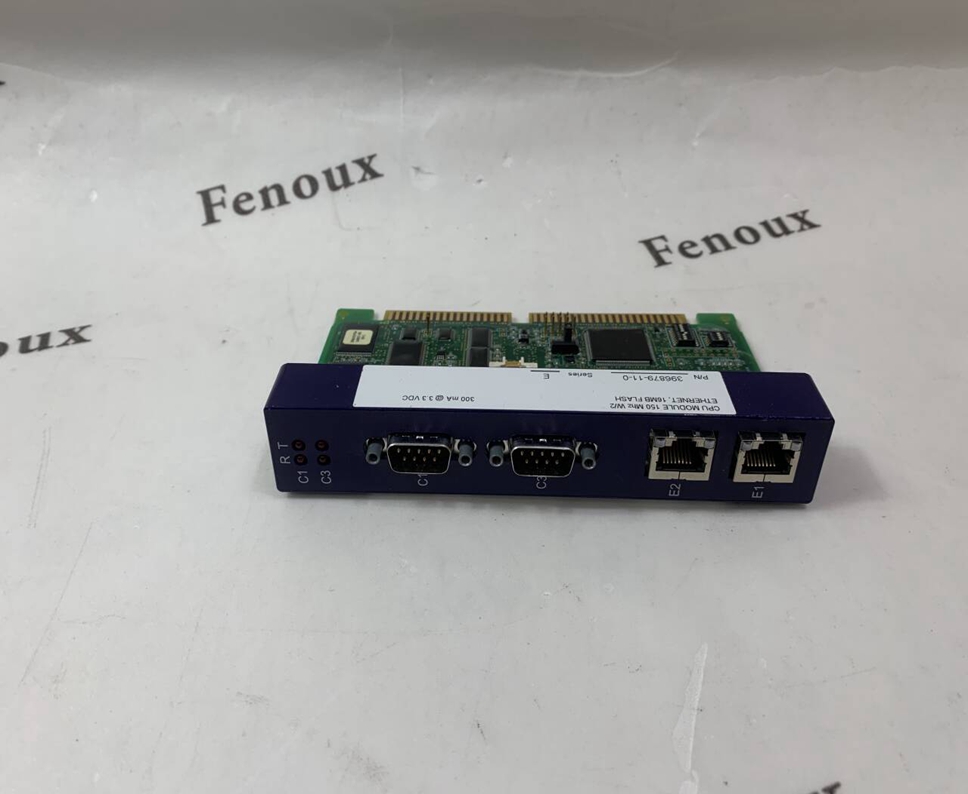

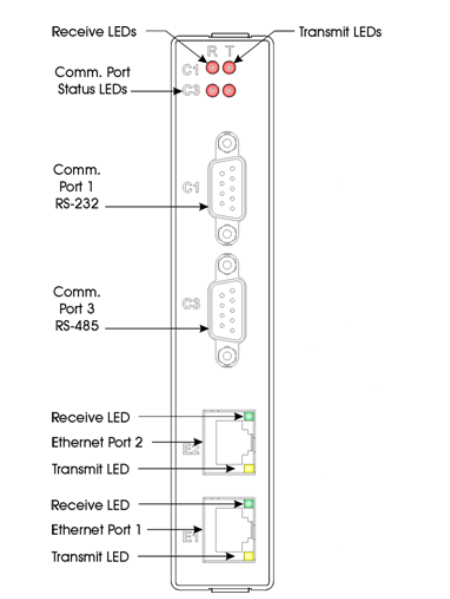

The CPU module contains 16 MB of FLASH memory. The FLASH

memory holds the system firmware and the boot project. Optionally

FLASH memory also stores the zipped ControlWave project (*.zwt),

user files, and historical data (audit/archive files).The FLASH does not

support hardware write protection.

The Power Supply/Sequencer module (PSSM) takes power from an

external bulk DC power supply and then provides power through the

ControlWave Micro housing/backplane to all installed modules.

The PSSM operates from +10.7 to +30 Vdc or from +21.7 to +30 Vdc.

You configure the nominal input supply configuration (12V or 24V)

using configuration jumper switches on the PSSM.

The PSSM includes:

 a wide input range Vin to 3.3V DC to DC Converter

 1200 msec good power detection circuitry

 Vin out-of-specifications detection circuitry

 Watchdog output connector

 Status LEDs

 Vin 12-bit serial analog to digital converter

There are two versions of the PSSM currently available for the

ControlWave Micro. One version includes a keyed run/remote/local

switch (see Figure 1-4); the other version includes a mode switch (see

Figure 1-5). Chapter 2 includes instructions for setting these switches

and configuring the PSSM.
