Emerson KJ3222X1-BA1

The following tools are required for installation,

maintenance, and troubleshooting:

 Personal computer running ControlWave® Designer

under the currently supported version of Microsoft®

Windows® software (refer to ControlWave Designer

product data sheet, part D301308X012).

 Phillips-head screwdriver.

 Flat-head screwdriver.

 Connections made to RS-232 or RS-485

communications ports shall be mechanically secured

in place with suitable screw connections to prevent

loosening or disconnection during use.

 When using Ethernet connections, the RJ45

(Ethernet) connection must have a mating connector

with a valid securing clip to prevent loosening or

disconnection during use.

 The USB connector on the IEC 62591 module shall

not be used unless the area is known to be nonhazardous (non-flammable).

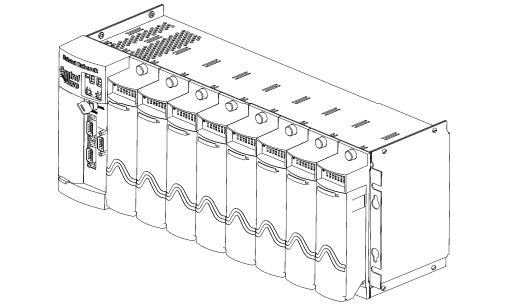

 Install the ControlWave Micro within a suitable

certified tool-accessible ATEX- approved IP54 or

better enclosure.

 The area in which the equipment is used should be a

minimum of Pollution degree 2, as defined by IEC

60664-1 (that is, the environment should not contain

conductive pollution and the equipment shall be

installed in an indoor or sheltered location).

 The equipment may be used in zone 2 with

flammable gases.

 The equipment may be used in the presence of

flammable gases and vapors with apparatus groups

IIC or IIB or IIA and with temperature classes T1 or T2

or T3 or T4.

 The equipment is certified for use in ambient

temperatures in the range of –40°C ≤ Tamb ≤ +70°C

and should not be used outside this range.

 The equipment is to be installed by suitably trained

personnel in accordance with the applicable code of

practice (typically EN 60079-14).

 The equipment does not require assembly or

dismantling.
