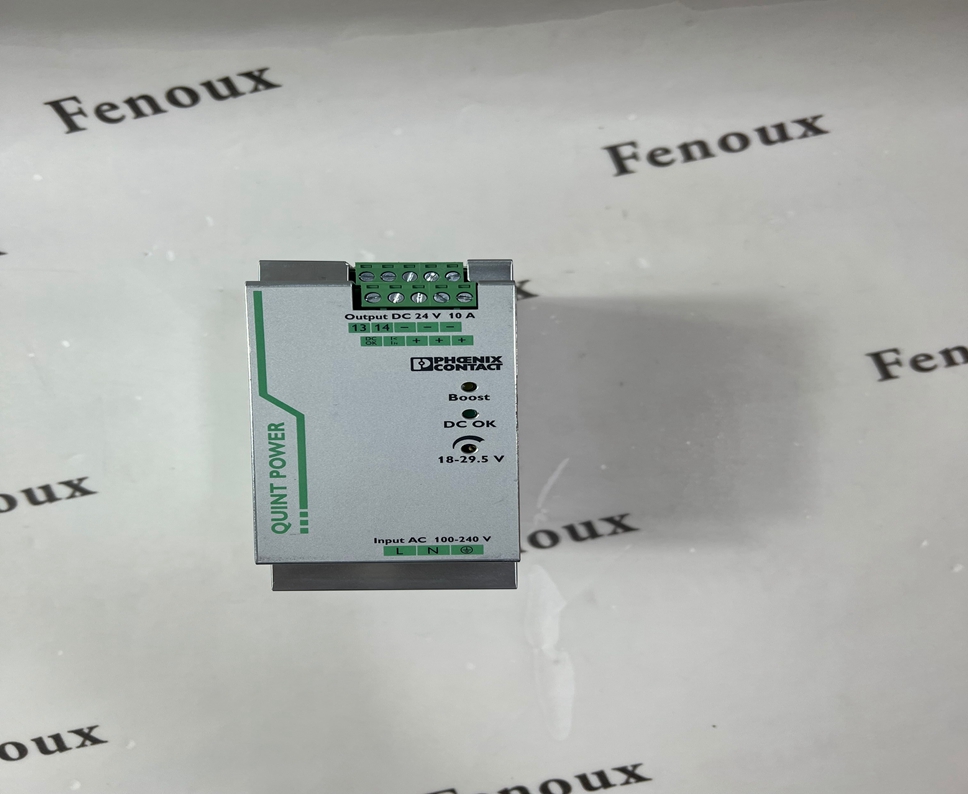

The power supply units are available with 24 V DC output voltage in various
performance classes and widths and with the special voltages 5, 12, 15 and 48 V DC. Their high degree of efficiency and
the low standby losses make for high power efficiency.
Height 90 mm
Depth 61 mm
Weight 0.1 kg
Efficiency > 84 % (for 230 V AC and nominal values)
Insulation voltage input/output 4 kV AC (type test)
2 kV AC (routine test)
Degree of protection IP20
Class of protection II
MTBF > 500 000 h in acc. with IEC 61709 (SN 29500)
Ambient temperature (operation) -25 °C ... 70 °C (> 55° C derating)
Ambient temperature (storage/transport) -40 °C ... 85 °C
Max. permissible relative humidity (operation) ≤ 95 % (at 25 °C, no condensation)
Mounting position Horizontal DIN rail NS 35, EN 60715
Assembly instructions Can be aligned: Horizontal 0 cm, vertical 3 cm
Electromagnetic compatibility Conformance with EMC directive 2004/108/EC
Immunity to interference EN 61000-6-2:2005
Low Voltage Directive Conformance with LV directive 2006/95/EC
Standard – Electrical equipment of machines EN 60204
Standard - Safety of transformers IEC 61558-2-17
Standard - Electrical safety IEC 60950/VDE 0805 (SELV)
Standard – Electronic equipment for use in
electrical power installations and their assembly
into electrical power installations
EN 50178/VDE 0160 (PELV)
Standard – Safety extra-low voltage IEC 60950 (SELV) and EN 60204 (PELV)
Standard - Safe isolation DIN VDE 0100-410
DIN VDE 0106-1010
Standard – Protection against electric shock DIN 57100-410
Standard – Protection against shock currents,
basic requirements for protective separation in
electrical equipment
DIN VDE 0106-101
