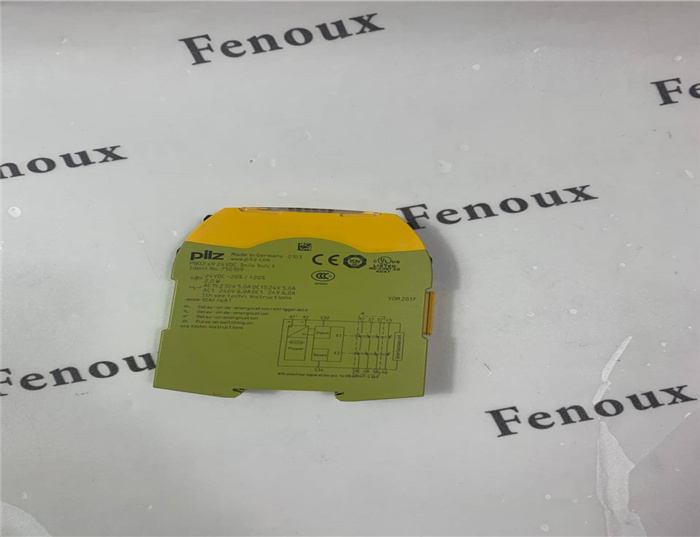

Brand： PILZ
Model number：750109
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.2kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:

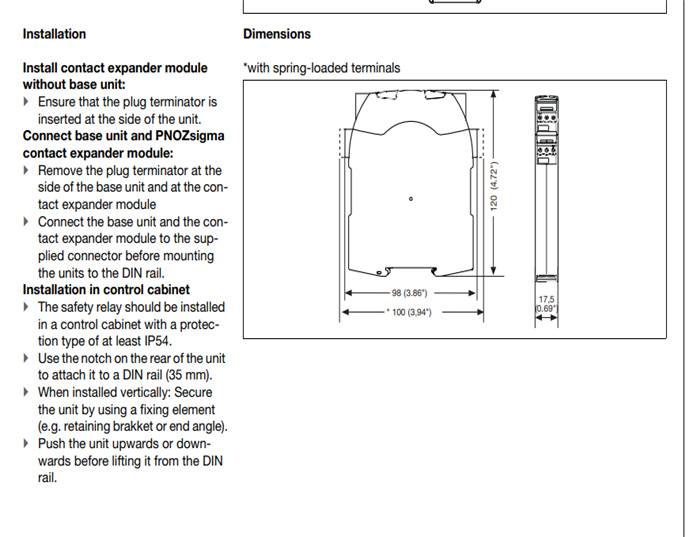

Montage_PNOZsigma Erweiterungsgert
Install contact expander module
without base unit:
` Ensure that the plug terminator is
inserted at the side of the unit.
Connect base unit and PNOZsigma
contact expander module:
` Remove the plug terminator at the
side of the base unit and at the contact
expander module
` Connect the base unit and the contact
expander module to the supplied
connector before mounting
the units to the DIN rail.
Installation in control cabinet
` The safety relay should be installed
in a control cabinet with a protection
type of at least IP54.
` Use the notch on the rear of the unit
to attach it to a DIN rail (35 mm).
` When installed vertically: Secure
the unit by using a fixing element
(e.g. retaining brakket or end angle).
` Push the unit upwards or downwards
before lifting it from the DIN
rail.
Function description
Funktionsbeschreibung
` Delay-on de-energisation, not retriggerable
If the supply voltage at the input circuit
is interrupted, the safety contacts
will open once the set release
time has elapsed, even if the safety
function is cancelled during the delay
time. The unit cannot be reactivated
until the delay time has
elapsed.
` Delay-on de-energisation, retriggerable
(only
possible as a standalone application
or with the PNOZsigma
base unit!)
If the supply voltage at the input circuit
is interrupted, the safety contacts
will open once the set release
time has elapsed.
If the safety function is cancelled
during the delay time (e.g. safety
gate closed), the unit will remain active.
Pulse on switching on
The safety contacts close when
supply voltage is applied, the feedback
loop is closed and finally the
input circuit is closed. The safety
contacts are reopened once the
pulse time has elapsed.
If the input circuit is opened for
more than 10 ms during the pulse
time, the safety contacts will open
immediately and the auxiliary contact
will be closed.
