Brand： POWERMAX

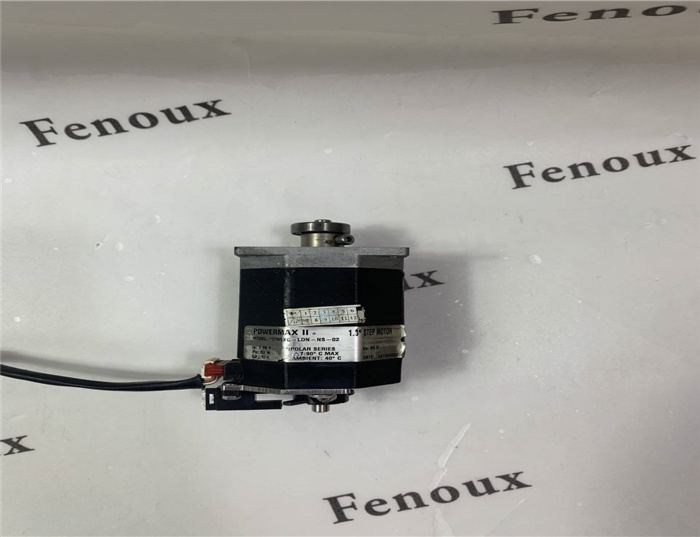

Model number：22NSXC-LDN-NS-02
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.25kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:

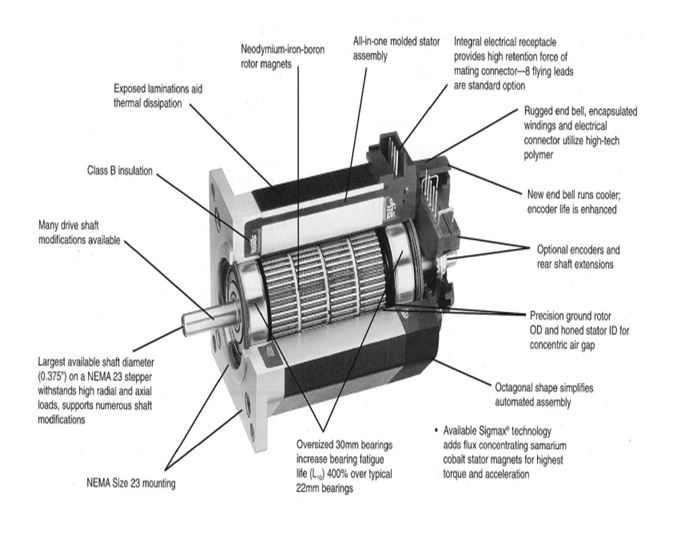

2-phase hybrid stepper motor in size NEMA 23
• Full step angle 1,8°
• M series with Sigmax® stator technology for a maximum
holding torque of up to 1,8 Nm
• P series with conventional stator design for holding torques of
up to 1,4 Nm
• Fully encapsulated stator
• Oversized bearings withstand high radial and axial loads
• Exceptional thermal dissipation
• Highest dynamics at shortest positioning times
• Optional low inertia rotor
Standard Version
• NEMA 23
• smooth shaft Ø 6,35 mm
• 8 flying leads for serial or parallel connection
• single shaft (version ...-LNN-...)
• alternative with double shaft (version ...-LDN-...)
• connecting cable KAB.300 has to be ordered separately
Further types and options for this series as well as stepper drives and other accessories
are available upon request.
