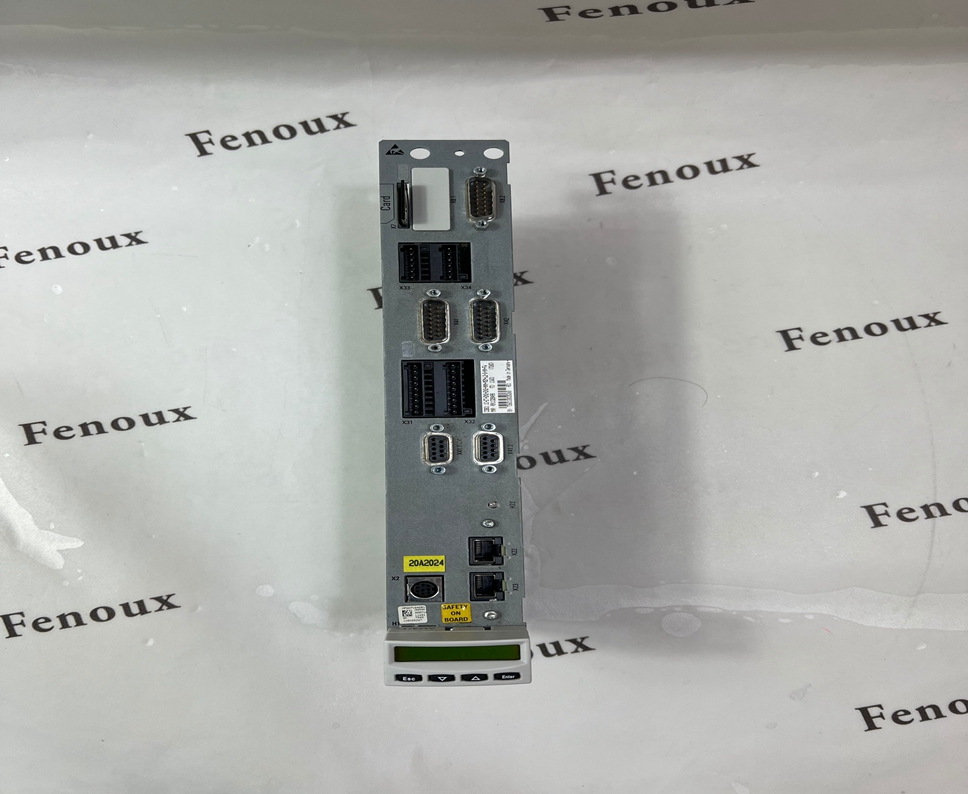

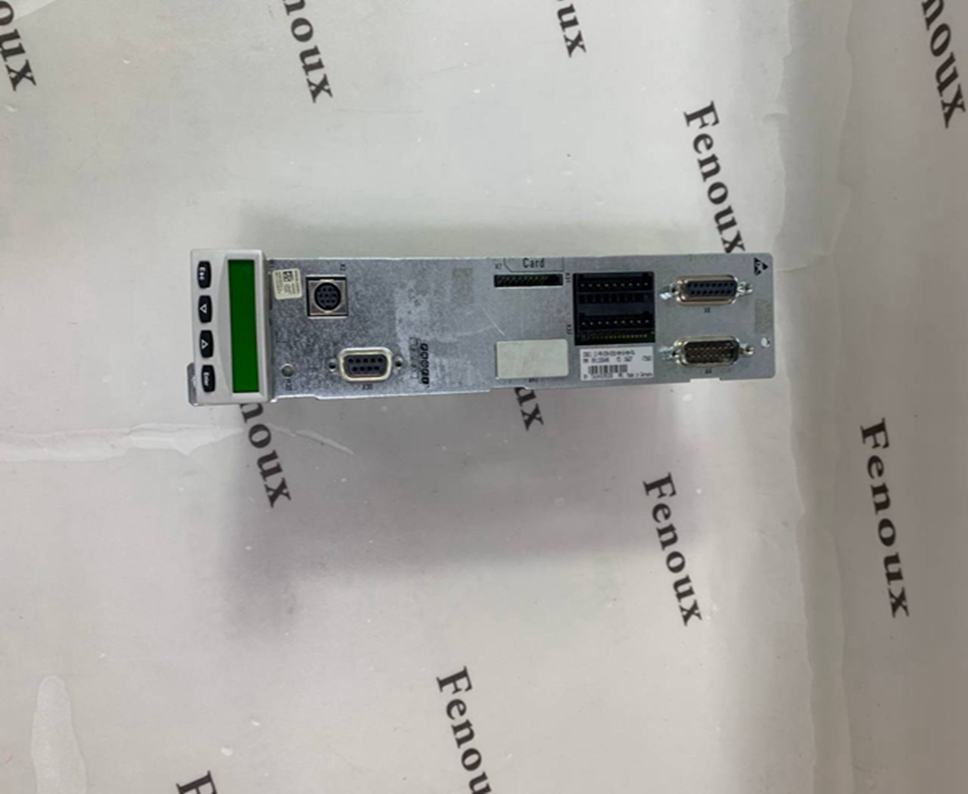

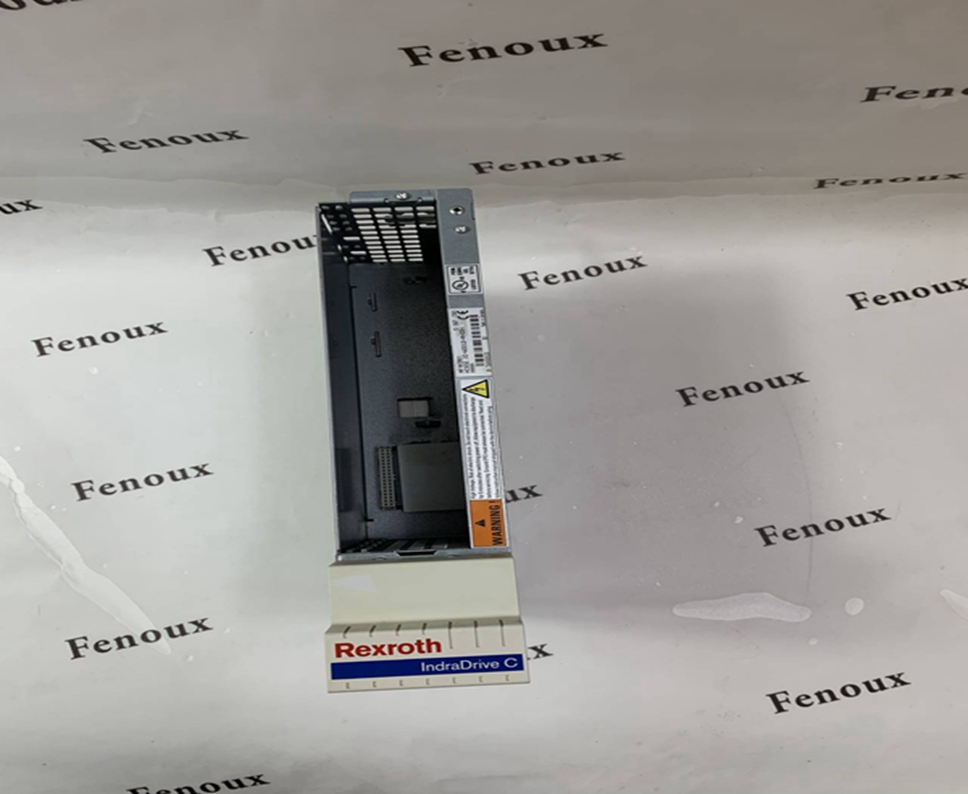

HDS04.2-W200N-HA01-FW REXROTH

● are not combustible

● are insensitive to the occurring high temperatures

Description:

The tables below show the nominal powers Pnenn

 of standard motors which

can be operated at the respective drive controller. The following conditions

apply to the data in the tables:

● Motor design:

4-pole standard motor (2 pole pairs) with rated voltage 3 AC 400 V,

50 Hz at mains voltage ULN ≥ 3 AC 400 V or

4-pole standard motor (2 pole pairs) with rated voltage 3 AC 460 V,

60 Hz at mains voltage ULN ≥ 3 AC 460 V

● Assigned mains choke is used

● Operation at minimum switching frequency fs= fs

 (min.)

● Rotary field at output with fout>fout_still

● Ambient temperature Ta≤Ta_work

● Overload ratio K = PDC_peak

 / PDC_base

 according to performance profile

"UEL_P_e"

● Type of mains connection: Individual Supply

When choosing standard motors for inverters, select an appropri‐

ate supply unit. Observe the performance data PDC_peak

 and

PDC_base

 in the performance profile "UEL_P_e" of the supply unit.
