490NAC0201 SCHNEIDER

Brand: Schneider

Model number: 490NAC0201

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.40kg

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

490NAC0201   SCHNEIDER

INQUIRE NOW

Products Name: 490NAC0201 SCHNEIDER

PRODUCT DESCRIPTION

When setting the relay characteristic/torque angle for the three phase directional overcurrent element, a positive angle setting was specified. This was due to the fact that we consider as polarising voltage, the phase voltage value in quadrature of the current under fault conditions. With directional earth fault protection, the residual current under fault conditions lies at an angle lagging the polarising residual earth fault voltage.

Description:

Use the reference mode to monitor and if local control is enabled (Reference channel 1 Fr1 page 45 set to AIU1) adjust the actual

reference value by rotating the jog dial.

When local control is enabled, the jog dial on the HMI acts as a potentiometer to change the reference value up and down within the limits

preset by other parameters (LSP or HSP). There is no need to press the ENT key to confirm the change of the reference.

If local command mode is disabled, using Command channel 1 Cd1 page 63, only reference values and units are displayed. The value

will be "read only" and cannot be modified by the jog dial (the reference is no longer given by the jog dial but from an AI or other source).

The actual reference displayed depends on the choice made in Reference channel 1 Fr1 page 62.

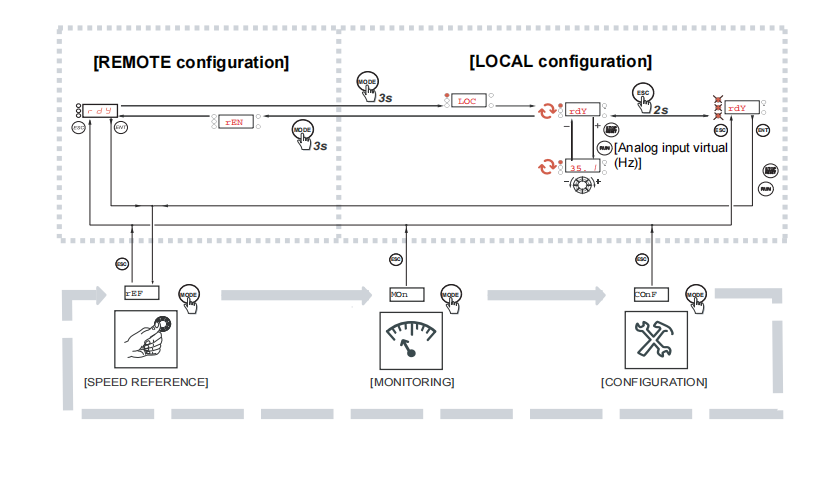

Organization tree

(1) It is not necessary to press the ENT key to confirm the modification of the reference.

(1) Depending on the active reference channel

Possible values:

LFr

AIU1

FrH

rPI

rPC

(2) 2s or ESC

Displayed parameter value and unit of the

diagram is given as examples Value - Unit

Code Name/Description Adjustment

range

Factory

settings

LFr

q

(1)

M External reference value –400 to +400 Hz -

Frequency reference visible if reference channel active is remote display.

Reference channel 1 Fr1 page 62 set to LCC

or Forced local reference FLOC page 63 set to LCC.

This parameter allows to modify the frequency reference with the jog dial.

Visibility depends on the drive settings.

AIU1

q

(1)

M Analog input virtual 0 to 100 % of HSP -

This parameter allows to modify the frequency reference with an analog input.

Reference channel 1 Fr1 page 62 set to AIU1

or Forced local reference FLOC page 63 set to AIU1

or PID manual reference PIM page 74 set to AIU1.

Visibility depends on the drive settings.

FrH M Speed reference 0 Hz to HSP -

AI1

LCC

Mdb

AIUI

Actual frequency reference. This parameter is in read-only mode. Visibility depends on the drive settings.

v Terminal

v Remote display

v Modbus

v Integrated display with Jog dial

rPI

q

(1)

M Internal PID reference 0 to 100% -

This parameter allows to modify the PID internal reference with the jog dial.

Visibility depends on the drive settings.

rPC M PID reference value 0 to 100% -

This parameter is the PID reference expressed as a %.

q Parameter that can be modified during operation or when stopped
