General

All tables are based on the operation of the motor

and controller in the same ambient temperature,

40°C (104°F) or less. Always be certain the

correct thermal units are installed in the starter

before operating the motor. Each thermal unit

shall be installed such that its catalog number is

visible. On melting alloy thermal units the ratchet

wheel must engage the pawl assembly.

Selection Procedure

1. Determine motor data:

a. Full load current rating

b. Service factor

NOTE: If motor full load current is not known, a

tentative thermal unit selection could be made,

based on horsepower and voltage. Refer to

Page 22.

2. Motor and controller in same ambient

temperature:

a. All starter classes, except Class 8198:

1. For 1.15 to 1.25 service factor motors use

100% of motor full load current for thermal

unit selection.

2. For 1.0 service factor motors use 90% of

motor full load current for thermal unit

selection.

b. Class 8198 only:

1. For 1.0 service factor motors use 100% of

motor full load current for thermal unit

selection.

2. For 1.15 to 1.25 service factor motors use

110% of motor full load current for thermal

unit selection.

3. Motor and controller in different ambient

temperatures:

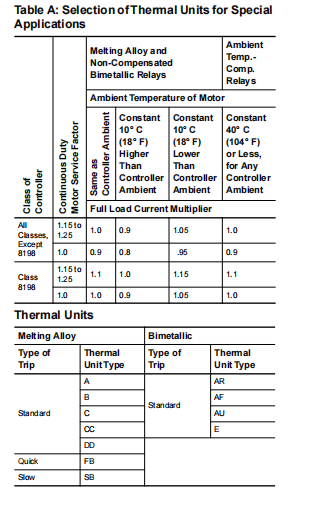

a. Multiply motor full load current by the

multiplier in Table A. Use the resultant full

load current for thermal unit selection.

4. Locate proper selection table from index,

Pages 19 and 20.

a. The proper thermal unit number will be found

adjacent, to the right of the range of full load

currents in which the motor full load current

or resultant full load current falls.

5. See Page 21 for calculation of trip current rating.

Slow Trip Thermal Unit Selection

To select Type SB slow trip thermal units, the

selection table for a standard Type B thermal unit

may be used with the following modifications: For

continuous rated motors having service factors of

1.15 to 1.25, select thermal units from the

standard Type B table using 93% (102% for Class

8198) of the full load current shown on the motor

nameplate and then substitute an SB for the B in

the thermal unit type number.

Example: A motor with a full load current of 14

amps controlled by an 8536 SCG3 would require

B22 thermal units for standard trip applications

and SB19.5 thermal units for slow trip

applications. The SB is selected by multiplying 14

amps times 93% for 13.02 amps and using this

value to select B19.5s. Then add the S prefix to

arrive at SB19.5s.

For continuous rated motors having a service

factor of 1.0, select thermal units in the same

manner using 84% (93% for Class 8198) of full

load current shown on the motor nameplate.

NOTE: SB thermal units are used on Size 0, 1, 2

and only some Size 3 applications. Check thermal

unit tables for current ranges.
