Remote Reset Module

The Remote Reset Module can be easily field installed on solid state overload relays. This module will

allow the overload relay to be reset from a remote location.

4 – 20 ma DC Communication Module

This module provides 4 - 20 madc output proportional to the percentage of current flowing to the motor,

according to the trip current adjustment setting. This feature works only on 9065 SF and ST overload relays.

Contact Units for Melting Alloy Type Overload Relays

One normally closed contact, Class 9998 Type SO1, is provided in each overload relay block on Type S

starters Sizes 00-4 and Size 6. On the Type S Size 5, a normally closed contact is provided with each of the

three overload relay blocks. The Class 9998 Type SO1 contact unit listed below is provided as standard in

each Class 9065 Type M melting alloy overload relay. Contact modules can be easily replaced and are

identified in the table below. Isolated overload relay alarm circuit contacts are available as an optional feature.

A pilot light or alarm bell can be wired in series with this contact to indicate that the overload relay has tripped.

For further information on isolated alarm contacts refer to Class 9999 Types SO4 and SO5.

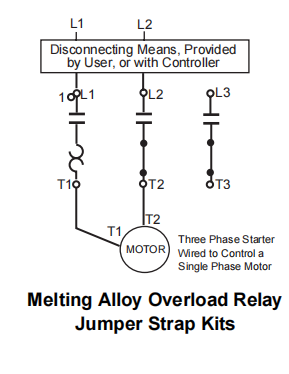

Melting Alloy Overload Relay Jumper Strap Kits

Jumper strap kits are for use on three-phase manual or magnetic starters with melting alloy overload

relays only, where a three-phase starter is used to control a single-phase motor. These kits will include

two jumper straps, a wiring diagram showing how to wire a three-phase starter to control a single-phase

motor, and single-phase (one thermal unit) selection tables.

For Use With

Description Class 9999

Parts Kit Type NEMA Size

8536 SA-SJ 00B through 7 Remote Reset Module RR04k 9065 SS, SR, SF, ST 00B through 7

8536 SE-SF 3 and 4 Top Mounting Bracket RB34qk 9065 SS, SR, SF, ST 3 and 4

q To be used to mount the remote reset module on the top of the overload relay.

k 120Vac power required.

For Use With

Voltage Description Class 9999

Parts Kit Type NEMA Size

9065 SF, ST 00B through 7 120Vac 4-20 madc Output AO01

9065 SF, ST 0 through 4 24Vdc 4-20 madc Output AO02

Magnetic Starter Descriptionq Parts Kit

Number NEMA Size Type Series

00-4

& 6

SA-SF

SH A & B Standard N.C. contact unit Class 9998

Type SO1u

5 SG A Standard N.C. contact unit 31102-514-50

N.C. and N.O. alarm (three point) contact unit 31102-514-51

q Refer to Page 11-131 for contact ratings.

u The Type SO1 is also the replacement contact unit for Class 9065 Type M melting alloy overload relays.

Class

For Starter Class 9998 Kit

Type No. Size Type

ALL

00, 0, 1, 2

and M0 & M1

SA, SB, SC, SD and

M & T (Manual) SO31

3,4 SE, SF SO32

5 SG None Available
